UHF Handheld Reader
UHF Handheld Reader

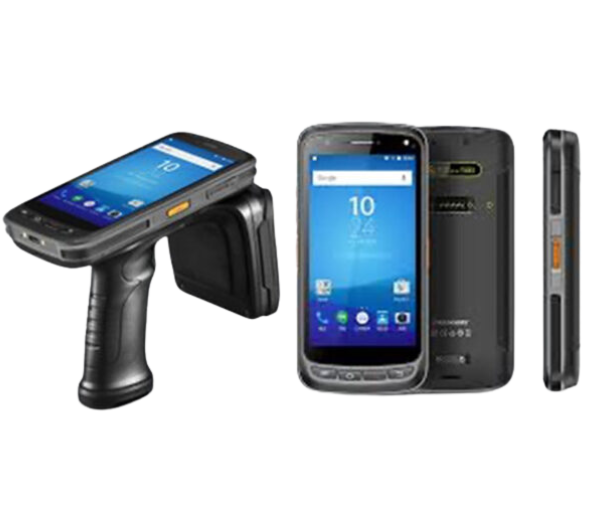

UHF Windows Based Handheld Reader (Model: C72)
- Frequency: 865MHz/868MHz / 920Υ925MHz / 902Υ928MHz
- Make: Chainway
- Read Range: >10m
- OS: Windows Android 6.0
- 2 GB RAM & 16 GB extendable
- SDK available in java Free Demo Soft
- Bluetooth 4.0, BLE.
- WIFI: 4Gέ B1/ B3/ B5/ B38/ B39/ B40/ B41
- Barcode Optional
- Accessories: Pistol, Cradle, Power adapter
- 4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key
- Camera: 13MP autofocus camera with Ƈash
- SIM Slot available
- Application: ETC toll, File Tracking, Jewelry Tracking, Material Movement Tracking, Solar panel tracking etc

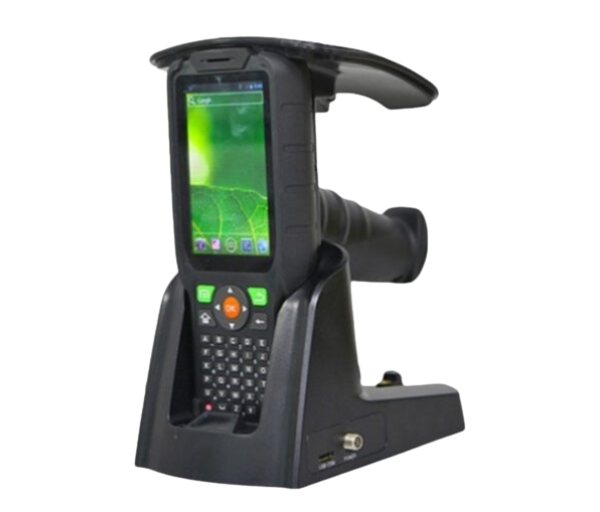

UHF Android Based Handheld Reader (Model: NWT-RH 2000)
- Frequency: UHF 865 – 867 MHz Circular
- Impinj R2000 Module
- Read Range: Up to 8 Mt.
- OS: Android Upgraded
- 7300 mAh battery. 7-8 Hours cont. use
- 16 GB ROM, 1.4 Ghz CPU. 512 MP
- SDK available in C#, Java.
- Bluetooth 4.0, Wi-Fi.
- Barcode Optional
- Accessories: Pistol, Cradle, Double Battery for charging
- 1.5 MT drop test
- Qwerty Keypad + Touch Screen
- 8 MP camera inbuilt auto focus
- SIM Slot available
- Application: Electrical Toll Collection, Asset Tracking, Apparel, Free Demo Software with source code available
FAQs— UHF Handheld Reader
-
What is a UHF Handheld Reader and where is it used in toll operations?
A UHF Handheld Reader is a portable device used to read Ultra High Frequency (UHF) RFID tags, such as FASTag, from vehicles. It is commonly used by toll staff for spot checks, tag verification, or in scenarios where fixed readers are not available.
-
What are the key benefits of Network Toll’s UHF Handheld Reader?
Network Toll’s UHF Handheld Reader provides flexibility, mobility, and high read range. It enables quick and accurate FASTag scanning on the move, supports offline/online modes, and is ideal for enforcement teams, temporary lanes, or field verification.
-
Is the UHF Handheld Reader compatible with FASTag and the Toll Management System (TMS)?
Yes, the reader is fully compatible with FASTag protocols and seamlessly integrates with Network Toll’s TMS. It supports real-time data transfer, secure communication, and user-friendly operation through Android-based interfaces.
