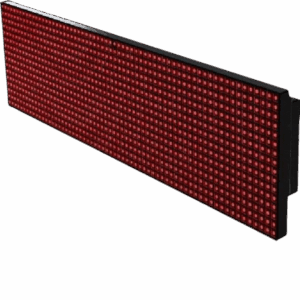

User Fare Display
Two-line super-bright LED display that shows the payable toll, vehicle class, low-balance warnings and safety messages.
Function
UFD is used to indicate the payable toll fare to the road user and when the payment has been made, the publicity message can be shown.
The main function of User Fare Display is to inform the driver of the vehicle classification entered by the toll collector and the toll to be paid.
It shall also convey low balance warnings, traffic safety messages, public relations and seasonal messages.
Features
- Synchronize with Toll Lane Computer
- Message visibility and legibility are excellent even under bright ambient lighting conditions.
- Uses super Bright Red LEDs
- Uses powder coated mild steel Housing
Technical Specification
| LED Color | Red |
|---|---|
| No. of LED | 1024 |
| LED Size | 5 mm |
| Intensity | 8000 mcd |
| Viewing Angle | 30° |
| Size | 640 mm (W) × 160 mm (H) |
| Characters | Number of Lines: 2 Lines, Character per line: 13 characters, Minimum Character Height: 70 mm, Minimum Character Width: 50 mm |
| Pixel Pitch | 10 mm |
| Communication | RS232 / Ethernet (both options available) |
| Power Supply | 230V AC / 50Hz |
| Power Consumption | 50W |
| LED Reliability | > 100000 hours |
| Dimension | 642 mm (W) × 162 mm (H) × 80 mm (D) ± 8% |
| Mounting Arrangement | Swivel type from bottom or Pole Mounting |
| Weight | 5 kg approx. |
| Operating Temperature | 5°C to +70°C |
| IP Rating Enclosure | IP65 |
| Make | Nwtech Solutions |
| Model Number | SE-1002 |
- Additional custom and tuned modes are available upon request based on customer requirements.
- Only available on the Long range variant.
