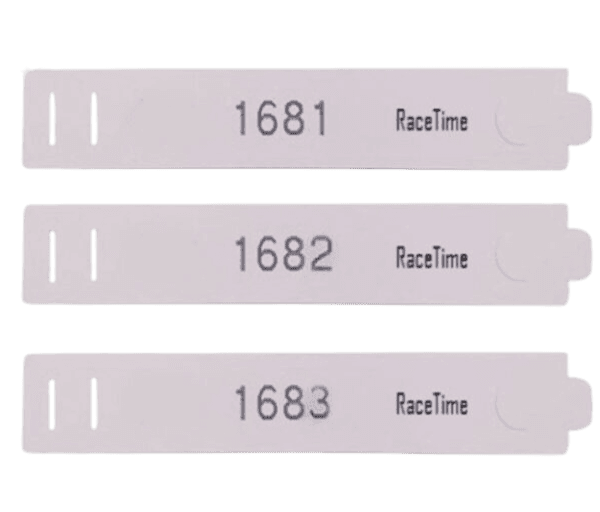

RFID shoe tag for race timing, model NWS-RT 08 B

Racing & Sports Timing Tags — Shoe, Bib & Reusable

Disposable and reusable shoe, bib and sports timing tags for marathon, cycling and endurance events, read at up to 8m with 100% accuracy.

Models & specifications

RFID Shoe Tag (Model: NWS-RT 08 B)

Project: Race, marathon, cycling, sports time tracking.
Use With: Excellent read range. Suggested usage with RFID floor mat antenna only. 100% accuracy.
Frequency: 865 – 867 MHz ISO/IEC 18000 6C Gen 1 | Chip: Alien Higgs 3
Anti collision. Range: 3 MT.
Material: Non tearable coated paper. Waterproof design.
Customize: Print with race applicant number, race name, sponsor etc.
Size: 162 x 30 mm. Standard to fit all sizes.
Apply: Tie to shoe laces.

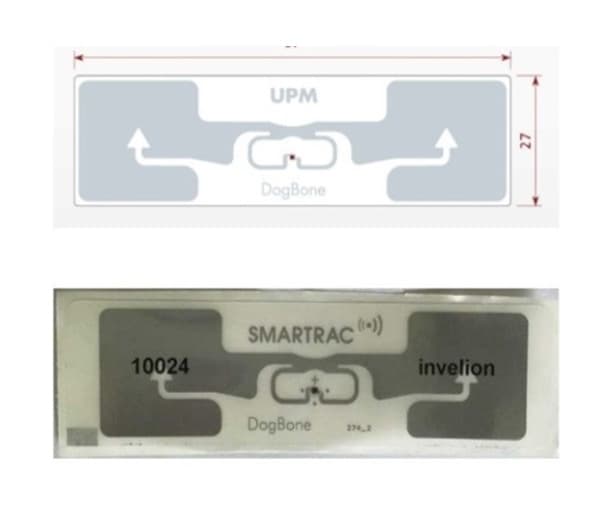

RFID bib tag for race timing, model NWS-RT 08 A

RFID Bib Tag (Model: NWS-RT 08 A)

Project: Time tracking — race, marathon, sports events, selections.
Paste on pre-printed bib paper that has participant & race details.
Excellent read range and performance.
Use With: 12 dBi integrated circular polarized reader / 4 port reader. Reader can be mounted on an L-shape pole on top of the track or sideways.
Frequency: 865 – 867 MHz ISO/IEC 18000 6C Gen 1 | Chip: Smartrac Impinj Monza R6P / Alien Higgs 3
Anti collision. One time use only.
Material: RFID chip on foam base.
Range: 8 MT with 100% accuracy.

Reusable Sports Timing Tag (Model: ETS-RT 08 B)

A reusable alternative to the disposable bib tag above. Worn on a lanyard around the neck or pinned to the T-shirt, it uses a Smartrac Dogbone inlay for high accuracy and reliability across marathon and race events. Built on UHF 865–928 MHz and fully compliant with ISO/IEC 18000-6C, the chip's anti-collision feature records multiple runners simultaneously at speed. Used with RFID readers positioned at checkpoints, it logs each participant's time in real time for live results, published rankings and certificates.

Frequency: UHF 865–928 MHz, ISO/IEC 18000-6C
Inlay: Smartrac Dogbone
Wear: Lanyard around neck, or pinned to T-shirt
Reusable across multiple events

Enquire about the Racing & Sports Timing Tag

Tell us your lane count, read range or volume and we’ll quote the right configuration.
