NT Prime — Traffic Monitoring Radar
Long-Range, Ultra High-Resolution Software-Defined Imaging Radar
Prime enables next-generation radar sensing systems by providing a breakthrough combination of resolution, range, point density, size, and software flexibility.
Prime delivers highly dense 4D point clouds with excellent performance for radar-based perception, classification, mapping, tracking, and autonomous navigation. Its rugged solid-state architecture allows reliable operation in rain, fog, dust, snow, and other harsh environments.
Highlights
- Industry leading resolution without compromise to doppler or range performance
- 0.35° static angular resolution with 2nd-gen advanced beamformer
- Radar SDK supports dynamic radar reconfiguration and performance optimization
- Robust against in-band interference
- Optional automotive ethernet or PoE
- Provide object list and tracking info, as well as classification output.
Mobile Applications (77GHz)
- Fully autonomous driving
- Mining and construction
- Industrial and agricultural
Stationary Applications (60GHz)
- Perimeter security and surveillance
- Traffic management and smart infrastructure
- UAV navigation and obstacle avoidance
Advanced Radar Technology for Modern Traffic Needs
At Network Toll, we are committed to building intelligent traffic management solutions that make roads safer, faster, and more efficient. Our flagship innovation, the NT Prime – Traffic Monitoring Radar, is designed to enable next-generation radar sensing systems that redefine the way traffic is monitored and managed.
The NT Prime offers a breakthrough combination of high resolution, extended range, superior point density, compact size, and software flexibility. This makes it a powerful solution for monitoring high-speed highways, busy city intersections, and toll plazas with unmatched precision.
NT-Prime Performance
| Parameter | Default Modes | 250m | 400m | 800m |
|---|---|---|---|---|
| Field of View (H × V) | Long range: 120° × 24°; Wide field: 120° × 50° | — | — | — |
| Angular Resolution, Static (H × V) | Long range: 0.35° × 0.4°; Wide field: 0.35° × 0.9° | — | — | — |
| Angular Accuracy (H × V) | 0.1° | — | — | — |
| Maximum Range | — | 250 m | 400 m | 800 m |
| Minimum Range | — | 0.3 m | 0.5 m | 1 m |
| Range Resolution | — | 0.26 m | 0.4 m | 0.8 m |
| Vehicle Detection | — | 250 m | 400 m | 800 m |
| Pedestrian Detection | — | >200 m | >200 m | >200 m |
| Doppler Ambiguity | 72 m/s | — | — | — |
| Doppler Resolution | 0.14 m/s | — | — | — |
| Doppler Accuracy | 0.05 m/s | — | — | — |
| Frame Rate | 10 Hz | — | — | — |
- Additional custom and tuned modes are available upon request based on customer requirements.
- The 800m mode is only available on the Long range variant.
Specifications
| Parameter | Automotive Configuration | Infrastructure Configuration |
|---|---|---|
| Frequency | 76-77 or 76-81 GHz | 60-64 GHz |
| Interface | 1000BASE-T1 | 1000BASE-T |

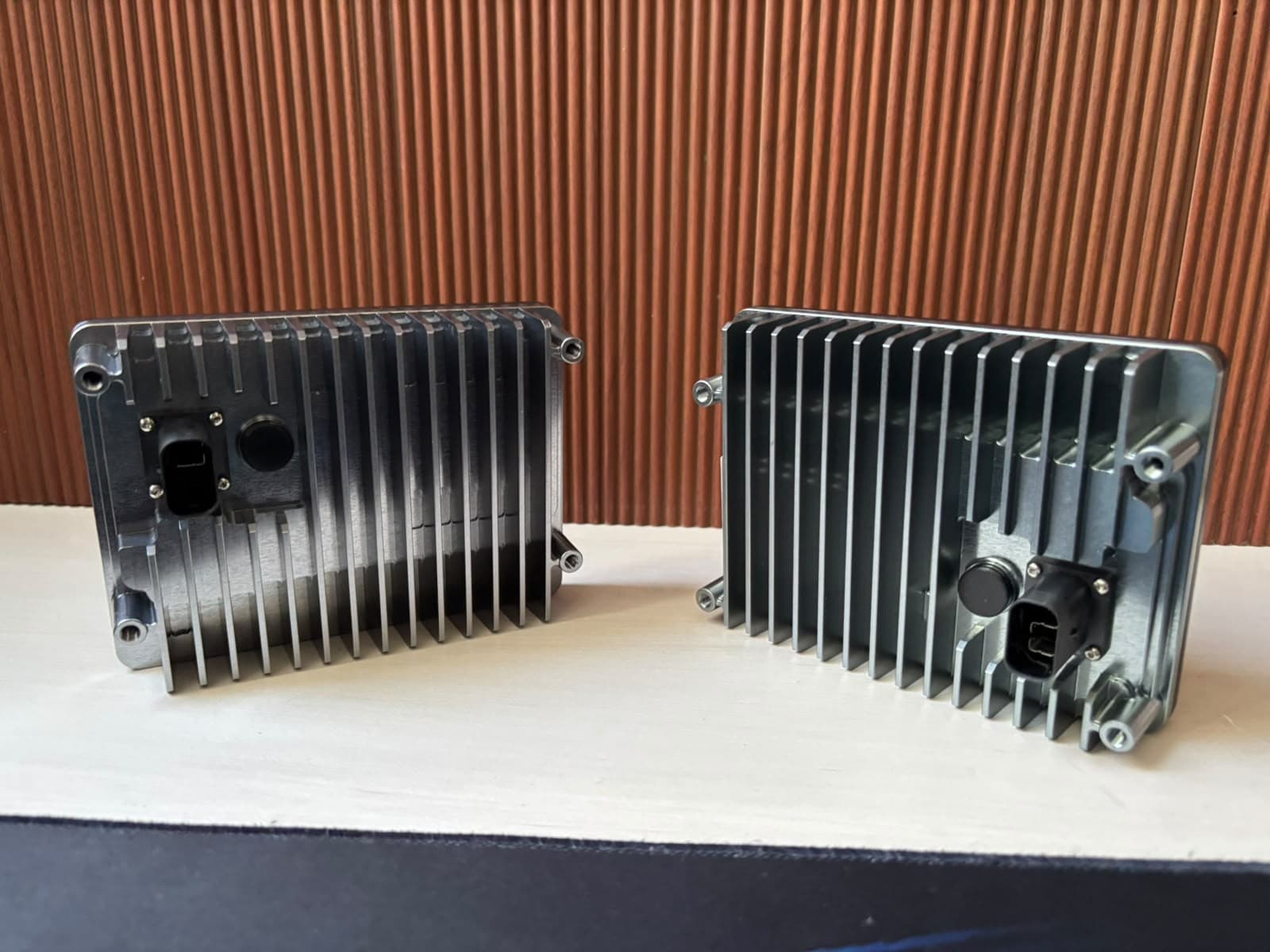

| Connections | 6-pin automotive | Waterproof RJ45 |
| Power Supply | +9-24V DC | 802.3bt Type 3 (PoE++) |
| Power Consumption | 22W avg, 34W peak based on transmit duty cycle | 22W avg, 34W peak based on transmit duty cycle |
| Synchronization | IEEE 1588 PTP, gPTP | IEEE 1588 PTP, gPTP |
| Operating Temperature | -40° to 85°C | -40° to 85°C |
| Ingress Protection | IP68 2-meter | IP68 2-meter |

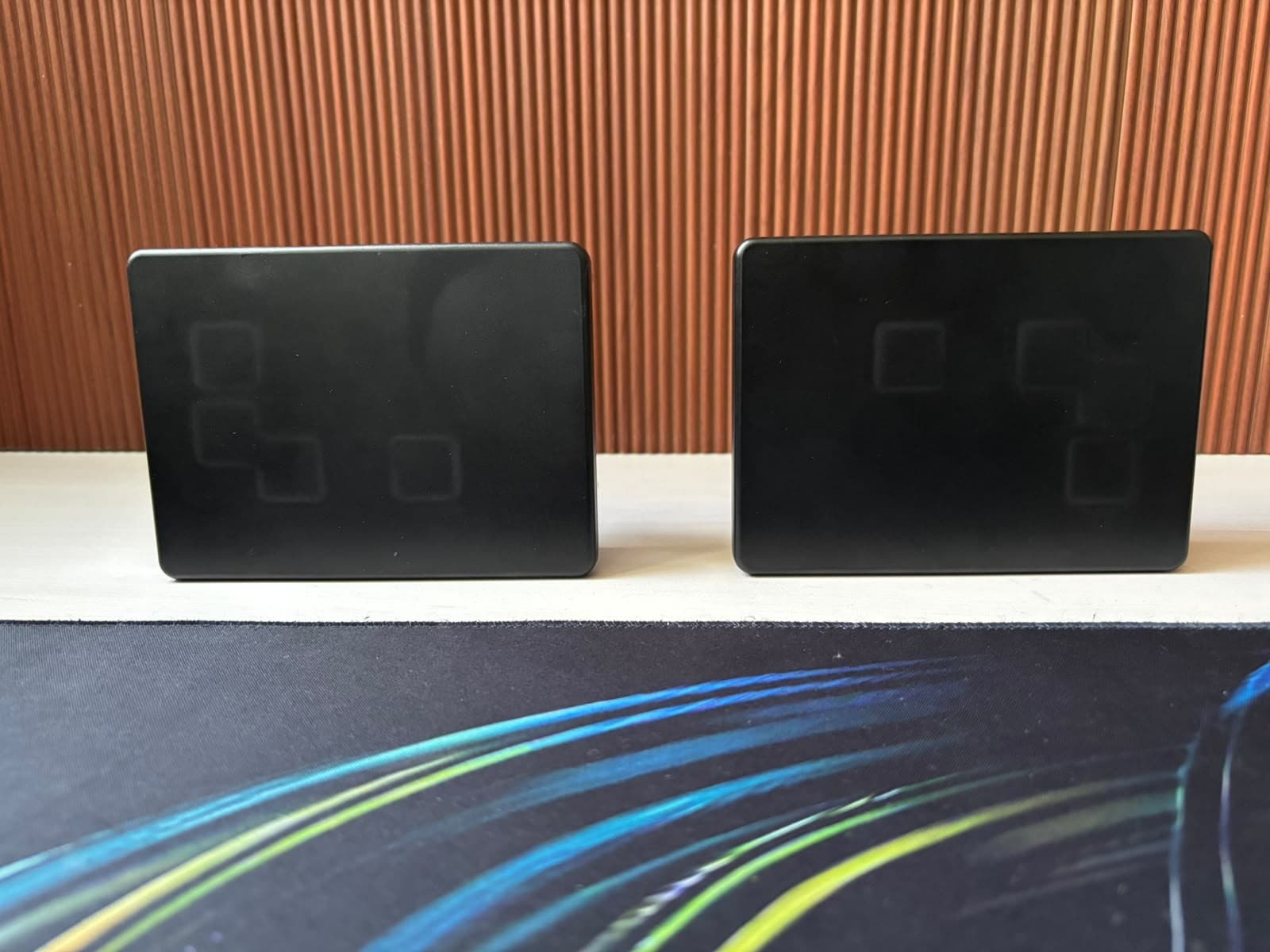

| Dimensions | 140 x 103 x 30 mm | 140 x 103 x 30 mm |
| Weight | 490 g | 490 g |

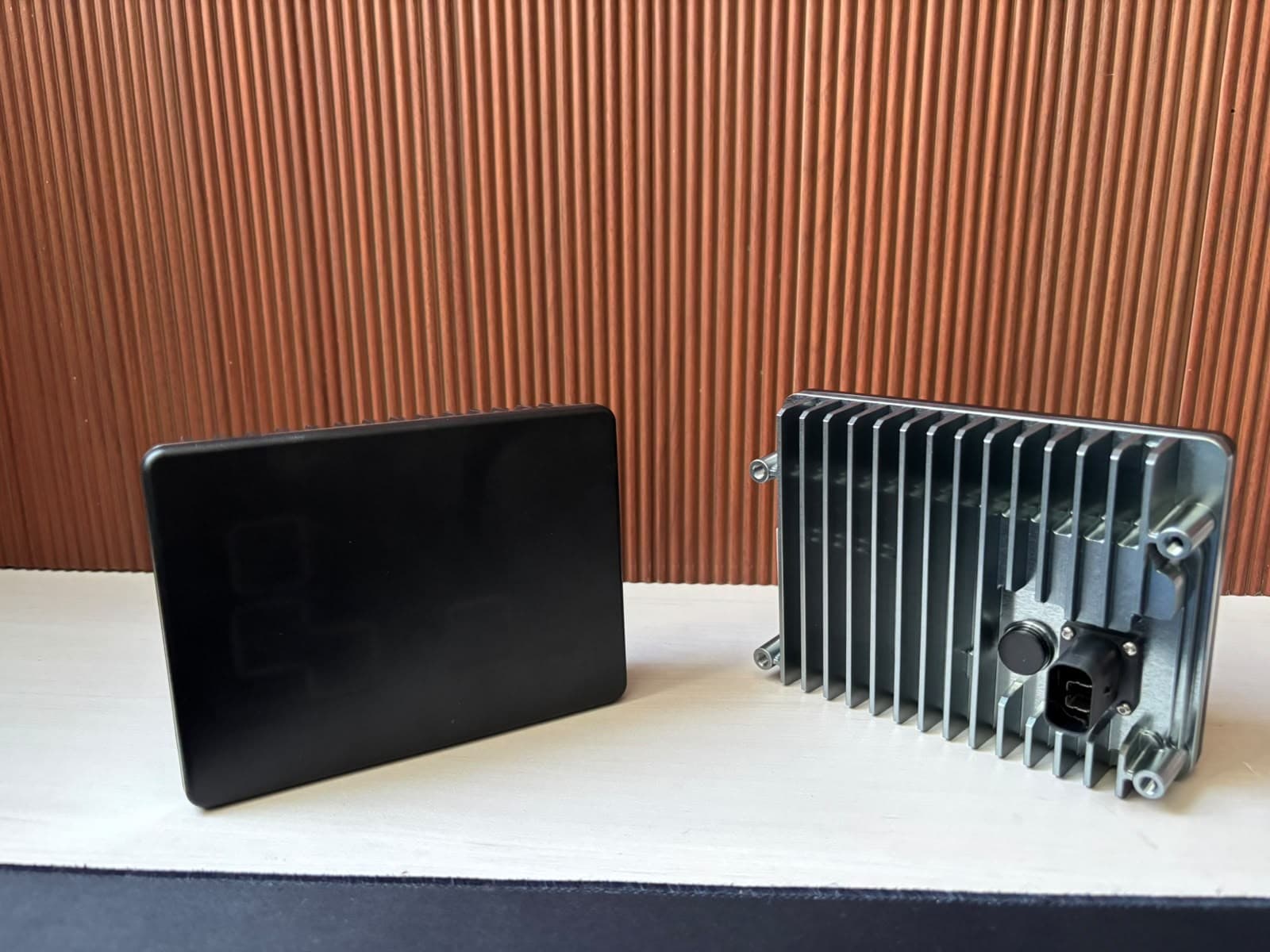

| Material | Polycarbonate black, 6061 aluminum black anodized | Polycarbonate black, 6061 aluminum black anodized |
