Jewellery Tags
Jewellery Tags

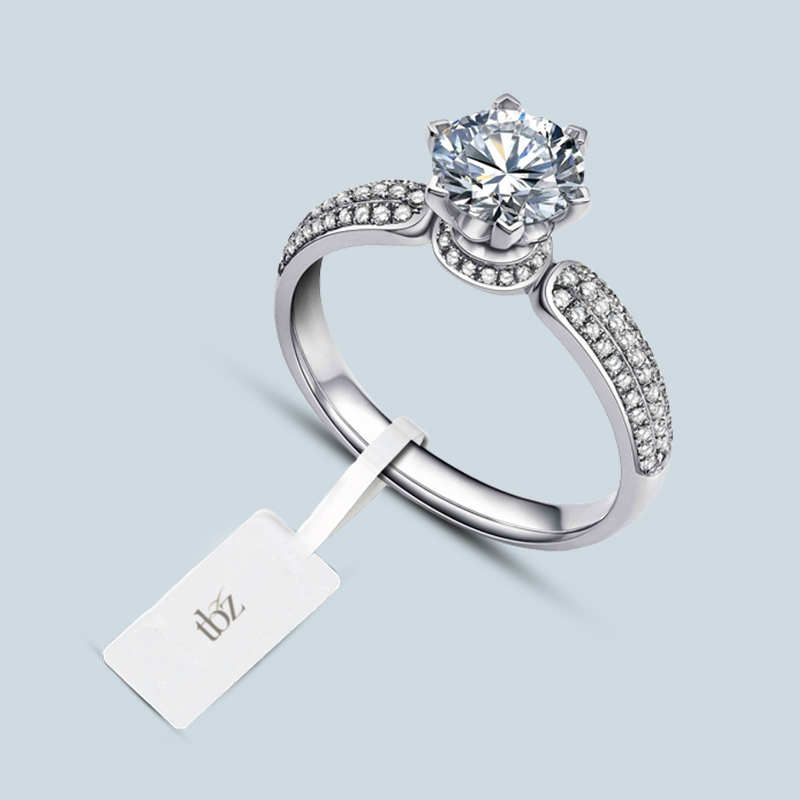

Model No: ETS-RT 06 A
ETS-RT 06 A is a uniquely designed high performance UHF tag meant for application in Jewellery items. It works on global UHF frequency 865 – 928 MHz and fully compliant with ISO/IEC 18000-6C, EPC Global C1G2 standards. Its wide read range of up to 4 mt and accurate performance makes it one of the best tags for tracking and identification of high value items on shelf like watches, necklace, rings, earrings, bracelets etc.
These tags are strategically designed to be hung on items and meant for one time use only. The antenna and chip are embedded in high grade PET material to make it durable and look elegant with a glossy shine on its surface. Combined with RFID reader, the jewellery tag delivers exceptional reliability in a smaller form factor at competitive pricing.
Features
UHF
Thick PET Material
Glossy Look
Custom Printing
Water resistant
EPC Class 1 Gen2, ISO 18000-6B,C
Range 4 MT.
Chemical Proof
Application Areas
Watches
Earrings
Bracelets
Jewellery Retail Workshop
Rings
Wallets
Technical Specification
| Parameters | 70 mm x 36 mm | 96 mm x 23 mm |
|---|---|---|
| Chip | Monza M730 / Alien H9 / R6-P | NXP UCODE 9 / UCODE 9xe |
| Frequency | UHF 865-868MHz, 902-928 MHz | |
| Protocol | ISO/IEC 18000-6C, EPC Global C1G2 | |
| Dimensions | 70 mm x 36 mm | |
| Read distance | 0-4 m (depends on reader/environment) | |
| Memory | Depends on Chip used | |
| Antenna | Aluminum | |
| Working Mode | Read and Write | |
| Base Material | PET (Glossy or Matte) | |
| Data Retention | 10 years | |
| Programming Cycle | 100,000 times | |
| Operating Temp | -25°C to +70°C | |
| Storage Temp | -20°C to +65°C | |
| Adhesive | High grade industrial adhesive | |
| Weight per tag | 1 gram | 1.2 gram |
| Colour | White | |
| Protection Grade | Resistant to Chemical, Water | |
| Custom Printing | Yes. Can print logo, text, barcode |

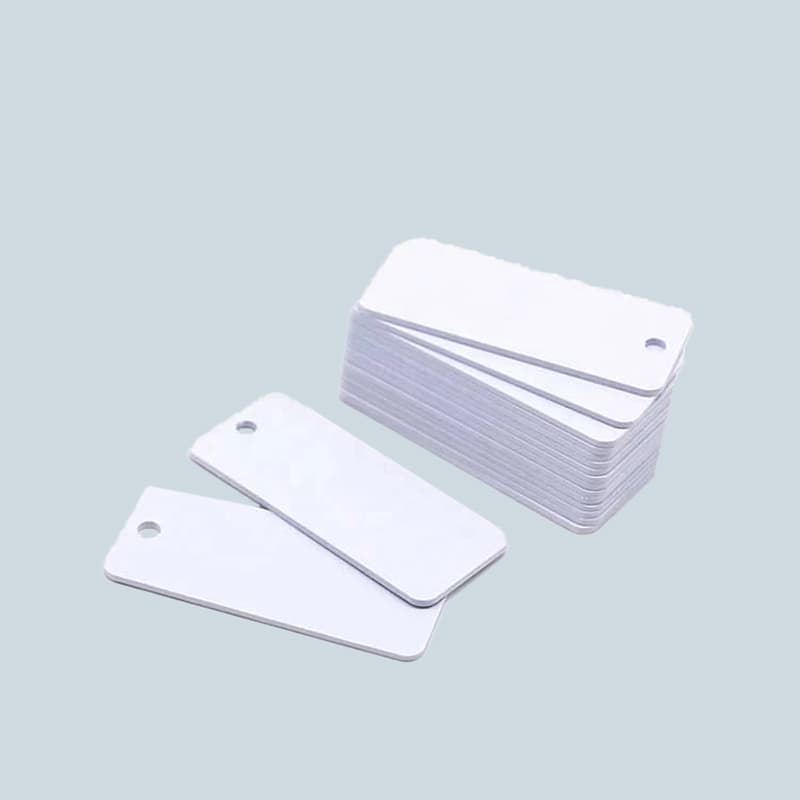

Model No: ETS-RT 06 B
ETS-RT 06 B is a PVC based reusable RFID tag meant for expensive item identification and tracking in premium high end retail stores and jewelry shops. It can easily be attached to assets using nylon threads which can later be taken off after billing for next use. These tags are small is size, lightweight and have smooth glossy surface which can be used for printing logo, barcode etc.
The tag delivers seamless performance and excellent accuracy when used with handheld terminals to track and manage bulk inventory within fraction of seconds. It has a read range of up to 3 meters and fully compliant with ISO/IEC 18000-6C, EPC Global C1G2 standard protocols.
Features
UHF
Thick PET Material
Glossy Look
Custom Printing
Water resistant
EPC Class 1 Gen2, ISO 18000-6B,C
Range Range Upto 3 Meter
Chemical Proof
Application Areas
Watches
Earrings
Bracelets
Jewellery Retail Workshop
Handbags/Clothing
Wallets
Technical Specification
| Parameter | Specification |
|---|---|
| Model Number | ETS-RT 06 B |
| Application | Jewellery products and other premium & luxury items like bags, watches etc. |
| Chip | Alien Higgs 9 / Monza R6 / Monza R6P / UCODE 7 / UCODE 8 |
| Frequency | UHF 865-868MHz, 902-928 MHz |
| Protocol | ISO/IEC 18000-6C, EPC Global C1G2 |
| Dimensions | 35 x 15 x 0.85 mm / 28 x 15 mm x 0.85 mm |
| Read distance | Up to 3 mt (dependent on reader and environment) |
| Memory | Depends on Chip used |
| Antenna | Embedded inside 2 layers of high-grade PVC |
| Working Mode | Read and write |
| Base Material | PVC |
| Data Retention | 10 years |
| Programing cycle | 100,000 times |
| Operating Temp | -25°C to +70°C |
| Storage Temp. | -20°C to +65°C |
| Application Type | Hang using Nylon Thread |
| Packing size | 500 tags per packet |
| Weight per tag | 2 gram |
| Colour | White |
| Protection Grade | Resistant to Chemical, Water exposure |
| Custom Printing | Yes. Can print logo, text, barcode etc |

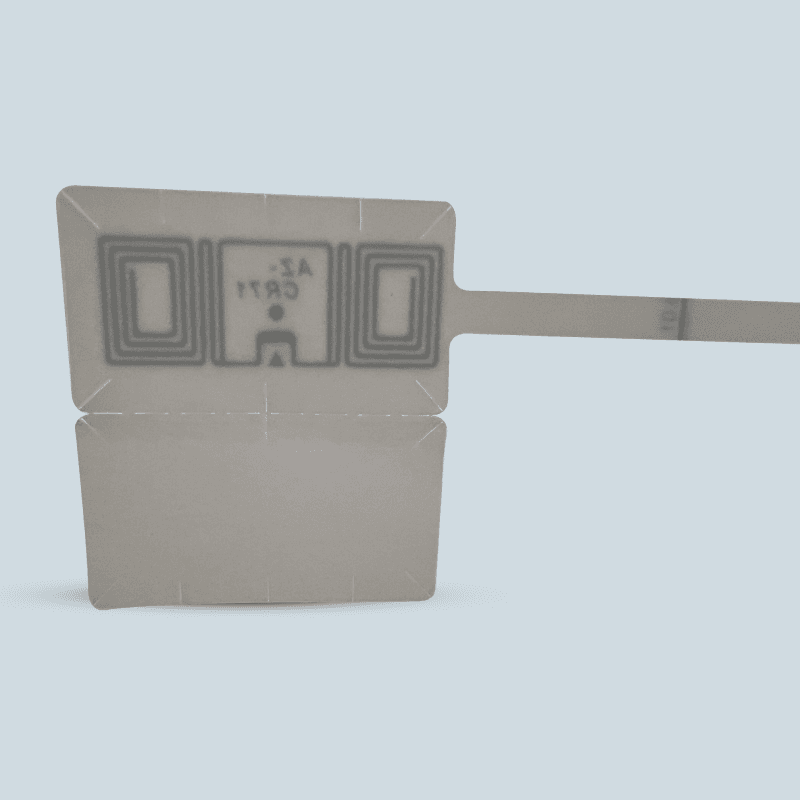

Model No: ETS-RT 06 C
ETS-RT 06 C is a one time use tamper proof RFID UHF Jewellery Tag which works on 865 – 928 MHz frequency and fully compliant with ISO/IEC 18000-6C, EPC Global C1 G2 standards. The antenna and chip are embedded in high grade PET material to make it durable and elegant. The tag is available in Glossy / Matt finish. Combined with RFID reader, the jewellery tag delivers exceptional reliability in a smaller form factor at competitive pricing. Its wide read range of up to 4 mt. and accurate performance makes it one of the best tags for tracking and identification of high value items on shelf like watches, necklace, rings, earrings, bracelets etc.
The tag is fully tamper proof from all sides i.e. once it is applied on any item it is impossible to re-use the same tag on another item. The strategically placed slits on the tag surface tampers the antenna and its tail.
We use high quality adhesive to ensures that the glue does not leaves even the slightest imprint on the item to which it is attached.
Features
UHF
Range 4 MT.
Chemical Proof
Glossy Look
Thick PET Material
EPC Class 1 Gen2, ISO 18000-6B,C
Tamper Proof
Water resistant
Custom Printing
Application Areas
Watches
Earrings
Bracelets
Jewellery Retail Workshop
Rings
Wallets
Technical Specification
| Parameter | Specification |
|---|---|
| Size | 70mm x 36mm |
| Chip | Monza M730 / Alien H9 / R6-P |
| Frequency | UHF 865-868MHz, 902-928 MHz |
| Protocol | ISO/IEC 18000-6C, EPC Global C1G2 |
| Dimensions | 70 mm x 36 mm |
| Read distance | 0-4 mt (dependent on reader and environment) |
| Memory | Depends on Chip used |
| Antenna | Aluminum |
| Working Mode | Read and Write |
| Base Material | PET (Available in Glossy in Matt Finish) |
| Data Retention | 10 years |
| Programing cycle | 100000 times |
| Operating Temp | -25°C to +70°C |
| Storage Temp. | -20°C to +65°C |
| Adhesive | High grade industrial adhesive |
| Weight per tag | 1 gram |
| Colour | White |
| Protection Grade | Resistant to Chemical, Water exposure |
| Custom Printing | Yes. Can print logo, text, barcode etc |
