OHLS — Overhead Lane Status

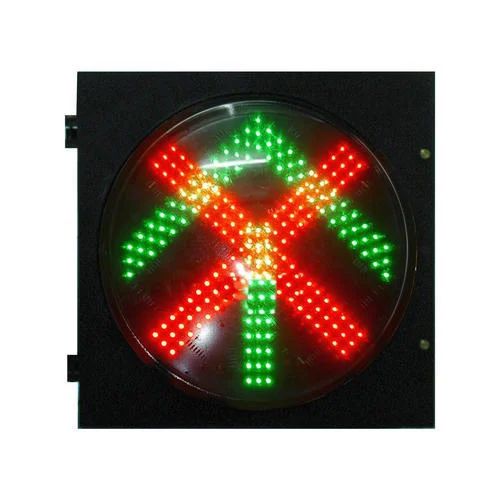

Overhead lane status signal showing a red cross or green arrow so drivers can see which lanes are open from 300 metres.
Features
- Synchronize with TLC
- IP 66 Rating
- Weather-proof housing with a sunshade or visor
- Automatic night dimming feature (Optional)
- Size: 100/200 mm
- Color: Red, Green, Both
- Body material: Polycarbonate
Specification
| Technology | LED |
|---|---|
| Colors | Red, Green |
| Red LEDs Intensity | 8000 mcd |
| Green LEDs Intensity | 10000 mcd |
| Visibility | 300 m |
| Wavelength | Red – 625 nm, Green – 505 nm |
| Enclosure Dimensions | Polycarbonate 300 mm dia LED Aspect |
| Lane Closed Indication | Red Cross |
| Lane Open Indication | Green Arrow |
| Enclosure Environmental Protection | IP 66 (LEDs sealed Retrofit Kit) |
| Electronic Components | Industrial grade components and connectors |
| Power Consumption | 10 W approx. |
| Interfacing Details | Two different Lines (L) for Green Arrow & Red Cross. Neutral & Earth are common. |
| Size | 300 x 300 mm |
| Power Supply | 230V AC |
