UHF desktop tag reader and writer, model NWS-RD 01

RFID Desktop Reader

Counter-top UHF, Mifare and NFC readers for tag issuance, registration, encoding and quick authentication.

Models & specifications

UHF Desktop Tag Reader & Writer (Model: NWS-RD 01 )

Frequency: UHF 865 – 867 MHz
Read Range: Approx. 40 cm
LED & Buzzer: Integrated
Interface: LAN, RS232
Application: Data Encoding, Issue & blocking of tags, Quick tag Authentication, Tag / Card Registration , Canteen Payment Management, RFID R&D projects

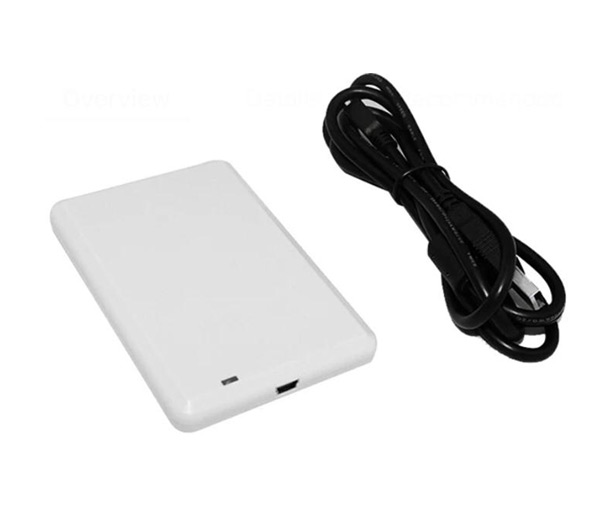

UHF tag registration reader and writer, model NWS-RD 04

UHF Tag Registration Reader & Writer (Model: NWS-RD 04)

Frequency: UHF 865 – 867 MHz
Read Range: Up to 40 cm LED & Buzzer: Integrated
Low Cost: and Easy to Carry (10 x 7 x 1 cm)
Interface: USB
Application: Data Encoding, Issue & blocking of tags, Quick tag Authentication, Tag / Card Registration , Canteen Payment Management

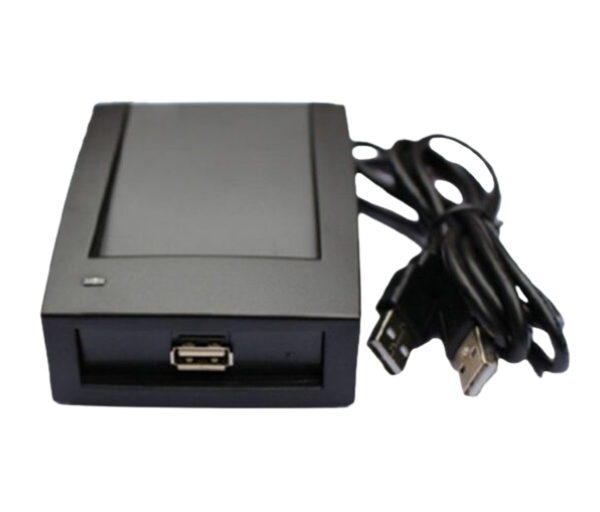

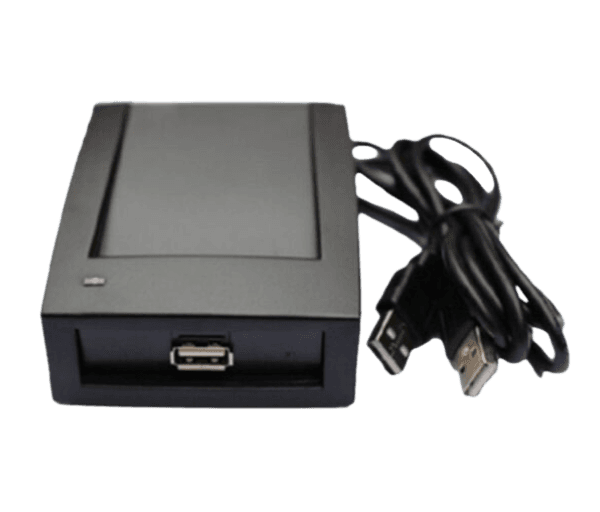

Multi Protocol Mifare Reader and Writer (Model: NWS-RD 11 (13.56 MHz ))

Frequency: 13.56 MHz
Read Range: 10 cm
Interface: Mini USB/ RS232
OS Support: WinXP, Win7, LINUX | LED & Buzzer
Application: Library, Events, Cashless Payments etc.
Support Card/ Tag: 13.56 MHz – Mifare(S50, S70, Ntag 203, Ultralight, Icode 2, ISO 15693

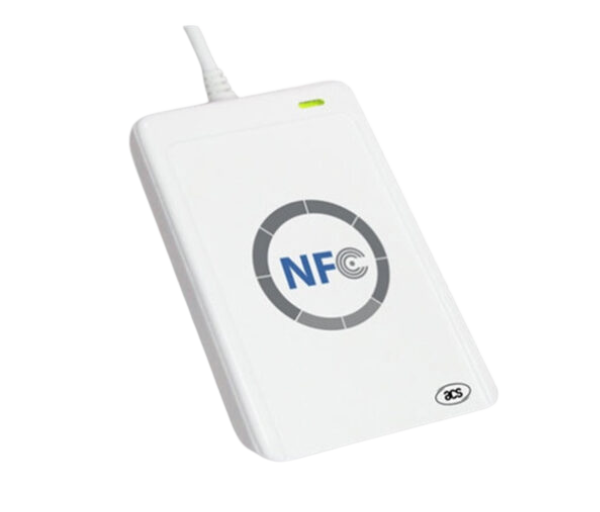

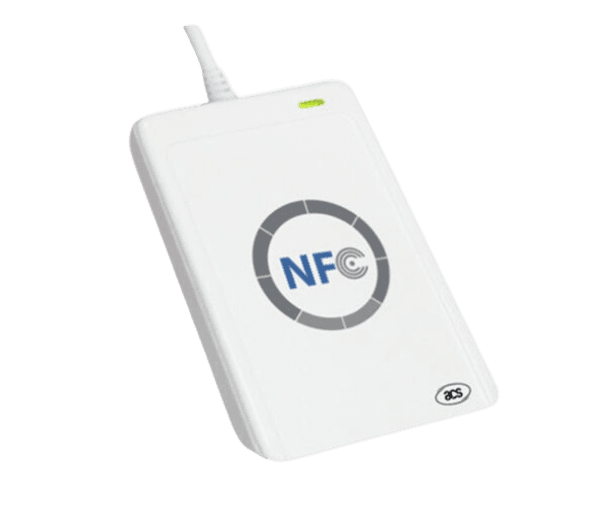

NFC smart card and tag reader, model NWS-RD 12

NFC Smart Card / Tag Reader (Model: NWS-RD 12)

Make: ACS
NFC: Compliant (Near Field Communication)
Interface: Mini USB
Integrated: LED & Buzzer
Application: POS Terminal, Vending Machine etc
SDK: Available for development
Dimension: 9.8 x 6.5 x 1.2 cm | Weight: 70 grams

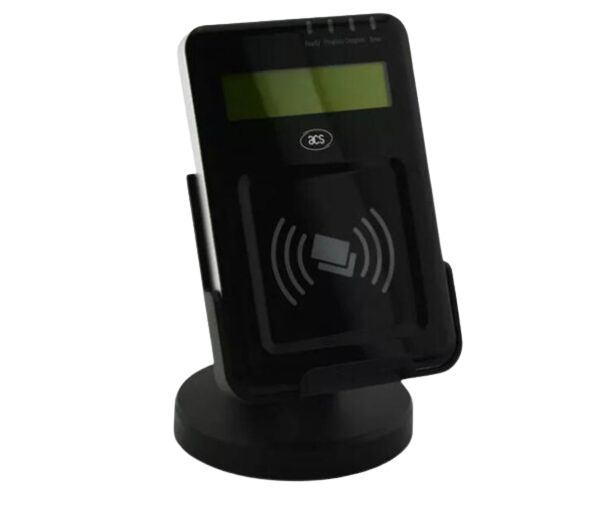

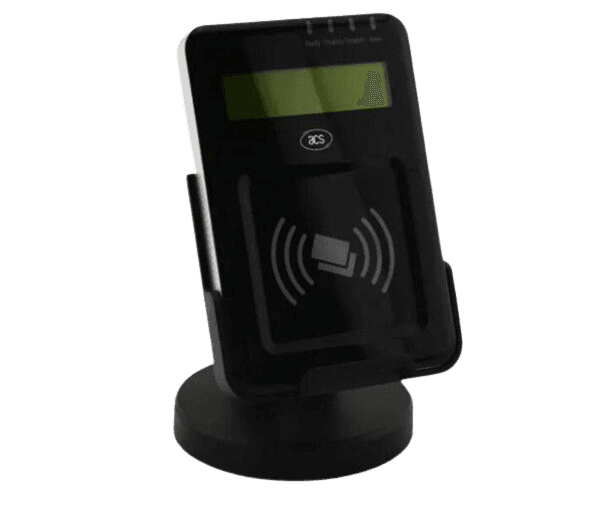

Display Based NFC & Mifare Reader (Model: NWS-RD 12)

Standalone RFID Reader: with high speed MCU & excellent card processing speed. | 2 Line graphic LCD
Support Ca: 14443A, 14443B, ISO 15693, ISO 7816
Read Range: 10 cm | Interface: Mini USB
Battery backup.: User controllable Buzzer & 4 LED's
OS: Win7, Win8, Mac, Linux, Android 3.1 & above
Application: E Payment, Transportation, Loyalty program, Access Control.

FAQs — RFID Desktop Reader

What is an RFID Desktop Reader and where is it used in toll operations?

An RFID Desktop Reader is a compact, USB-powered device used to read FASTag RFID cards or tags at administrative offices, back offices, or support counters. It helps in verifying, activating, or registering FASTags outside the toll lane environment.

What are the key features of Network Toll's RFID Desktop Reader?

Network Toll's RFID Desktop Reader offers fast and accurate tag reading, user-friendly operation, plug-and-play connectivity with Windows systems, and compatibility with standard FASTag formats. It is ideal for customer service and support functions.

How does the RFID Desktop Reader enhance toll management efficiency?

By enabling quick tag verification and backend processing, the RFID Desktop Reader supports smooth FASTag issuance, troubleshooting, and validation. It reduces lane-side delays by handling pre-verification and administrative tasks more effectively.

Enquire about the RFID Desktop Reader

Tell us your lane count, read range or volume and we’ll quote the right configuration.

Request a quote +91 9289757018
