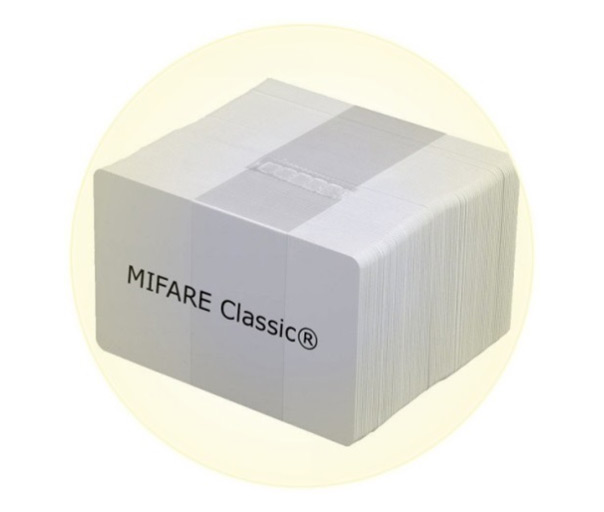

Mifare Card (Model: NWS-RC 01)
- Frequency: 13.56 MHz
RFID Card
Mifare, UHF, LF proximity, dual-frequency and magnetic cards in ultra high quality PVC with fully customised printing.
Models & specifications

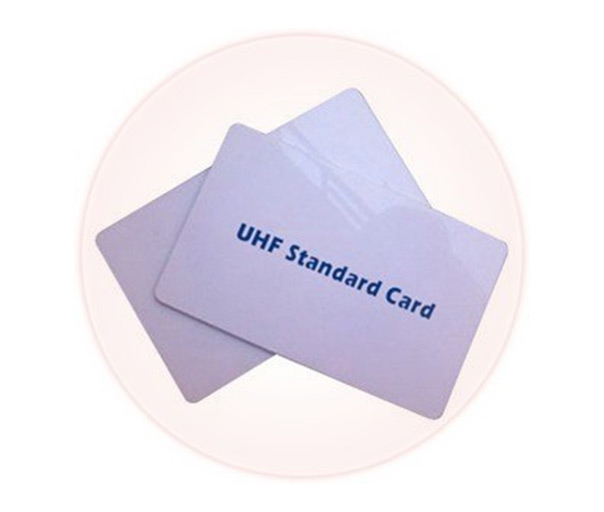

UHF Card (Model: NWS-RC 02)
- Frequency: 865–867 MHz

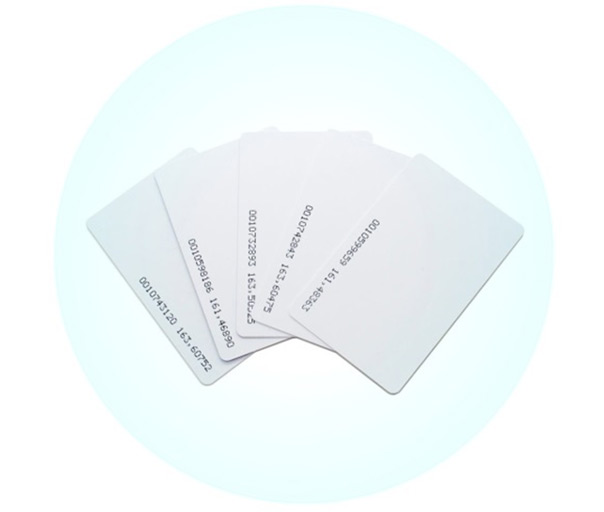

LF / Proximity Card (Model: NWS-RC 03)
- Frequency: 125 KHz

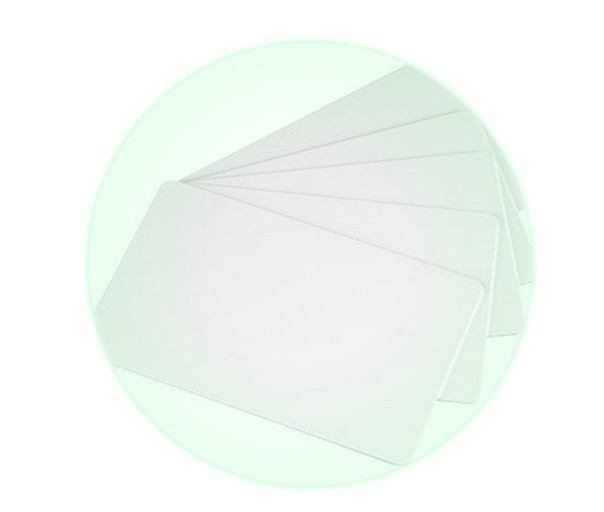

Blank Card (Model: NWS-RC 04)
- Paste any chip | Print

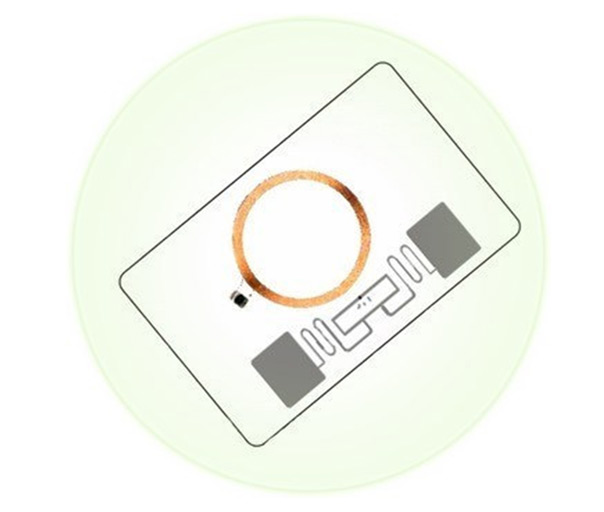

Dual Frequency Card (Model: NWS-RC 05)
- Frequency: Mix of 2 frequencies

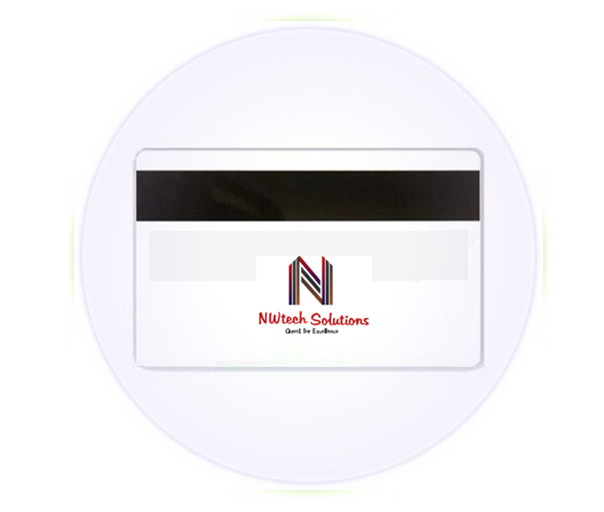

Magnetic / Loyalty Card (Model: NWS-RC 06)
- Hotel key card
Chip Options
- Mifare: Mifare 1K Classic S50, Mifare 4K S70, Mifare Ultralight, ICODE SLI
- UHF: Alien Higgs 3, Impinj Monza
- LF / Proximity: TK4100, EM4102, EM4305, T5577, HID Chips.
- Dual Frequency: UHF + HF | UHF + LF | LF + HF
- Magnetic Strip Card: HICO & LOCO
- Material: Ultra high quality PVC. Water proof, dust proof. IP 68
- Size: Standard 85.5 x 54 mm | Thickness: 0.85 mm (±0.02)
- Glossy / matt finish as required
Printing Options
- One side / double side thermal printing.
- Unique ID / barcode / QR code / logo, photo / content
- Hologram embossing
- Silkscreen print gold/silver
- Pre-printed cards for further printing
- Fully customized printing as required
- Double side filming lamination for scratch proof finish.
- Clean die cut edges & round corners give excellent mirror like look and feel
- 10 years data retention warranty.
FAQs — RFID Card
What types of cards are used in Network Toll's system?
Network Toll supports various types of smart cards, including prepaid toll cards, staff ID cards, and service vehicle access cards. These cards are embedded with RFID chips and are used for identification, access control, and transaction processing at toll plazas.
How do toll cards work in the toll management system?
Toll cards are scanned using RFID or smart card readers at toll booths. Once read, the system authenticates the card and deducts the toll fare or grants access based on the card type, ensuring a cashless and efficient tolling process.
Can smart cards be recharged or monitored in real time?
Yes, Network Toll's smart card system allows for easy recharge, balance tracking, and usage monitoring through integrated back-office systems or web portals. Real-time synchronization ensures accurate and secure toll transactions.
Downloads
Full datasheets in PDF, with the complete specification for each model.
Related products
Enquire about the RFID Card
Tell us your lane count, read range or volume and we’ll quote the right configuration.
