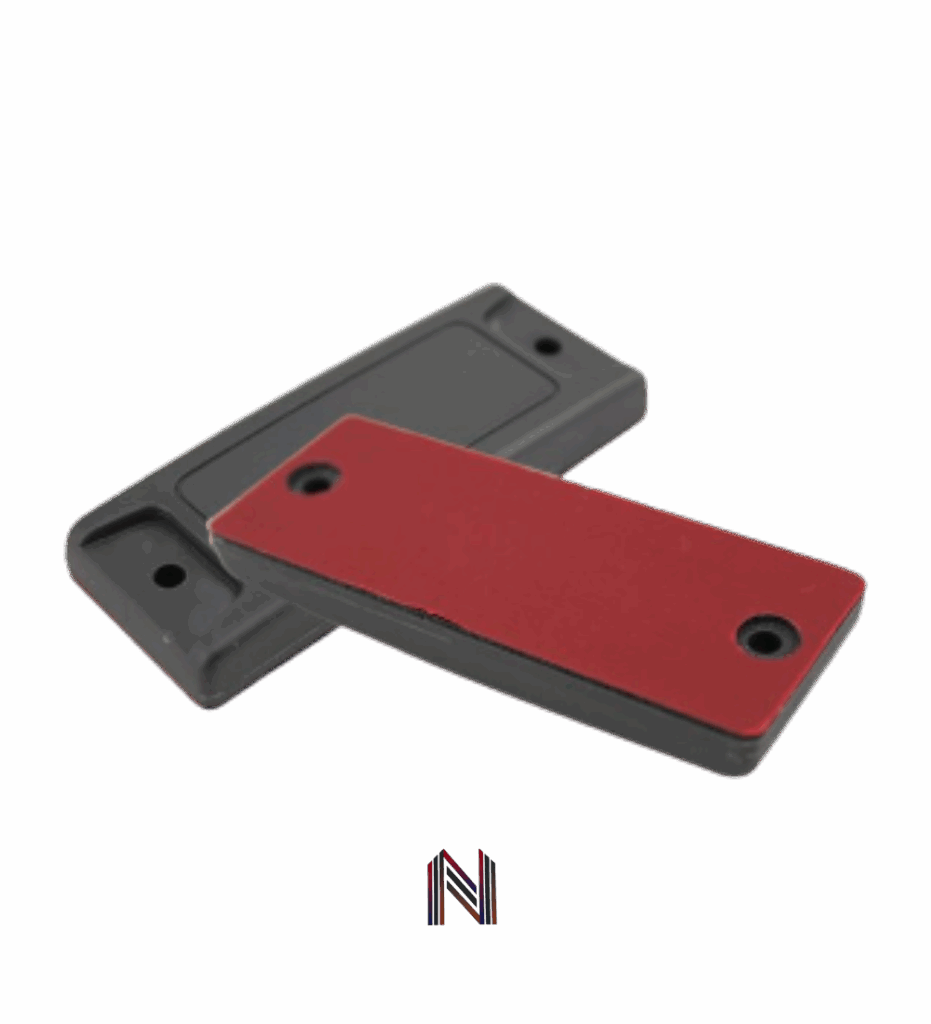

RFID Anti Metal Tag (Model: NTS-RT 15)

NTS-RT 15 is a RFID Anti Metal Tag that is used for application on machinery items and metal items that are made of iron, steel, copper, brass etc. It works on global UHF Frequency (865-868 MHz & 902-928 MHz) and is fully compliant with EPC Class 1 Gen 2 standards. The tag has an inbuilt NXP G2 Chip designed and encapsulated in such a format that the tag provides a read range of up to 0-12 mt.

The tag can either be pasted (comes with attached 3M gum sheet) or can be attached using screw.

The tag can resist high temperature and is free from any damage caused due to water, chemicals etc.

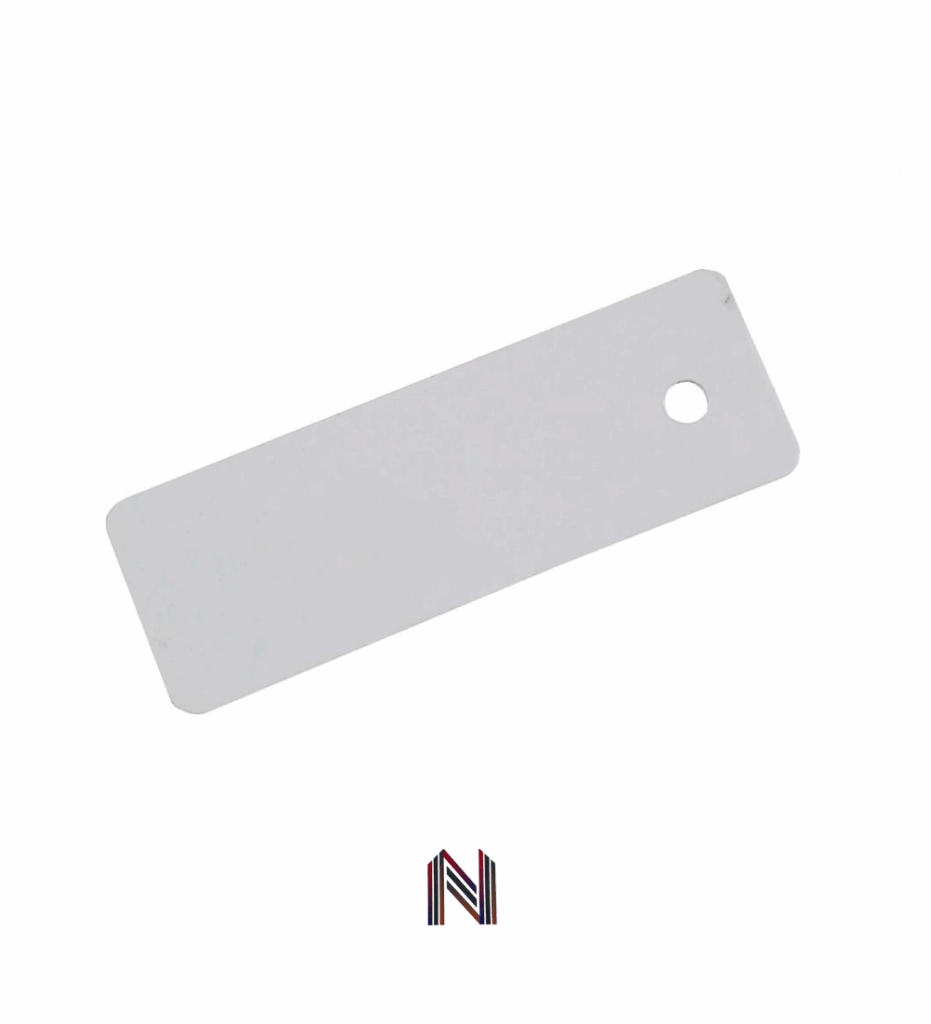

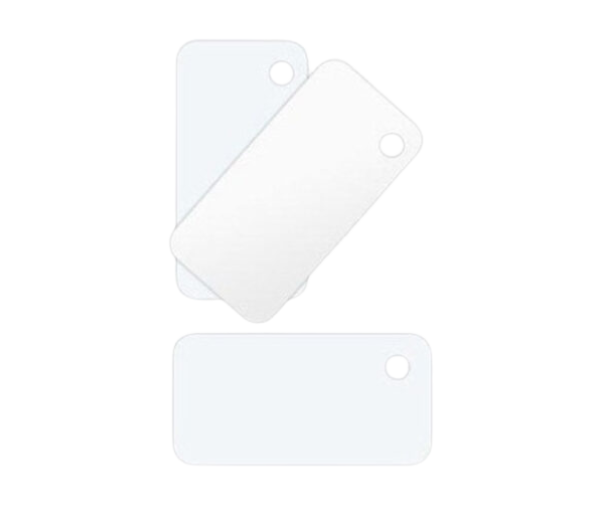

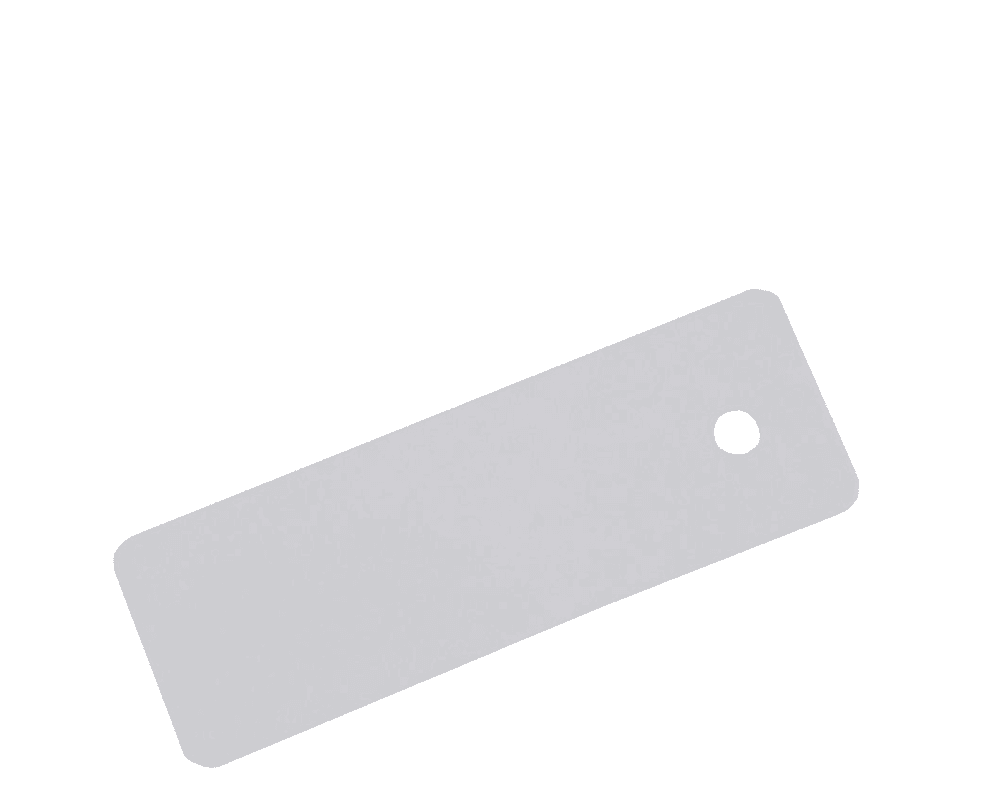

RFID Asset UHF Reusable Tags (Model: NTS-RT 40)

• •Reusable. Can be read and write for 100000 transactions.
• •Printing: Optional. Barcode, Tag ID, Unique Numbers, Text, Logo etc.
• •High and stable performance for a wide range of applications like warehouse material tracking, garments, etc.
• •Unique TID and pre-serialized EPC number which is worldwide unique.
• •Stick strong: we use strong adhesive glue ensures that the tags are durable.
• •ISO 9001:2008 Quality Management System

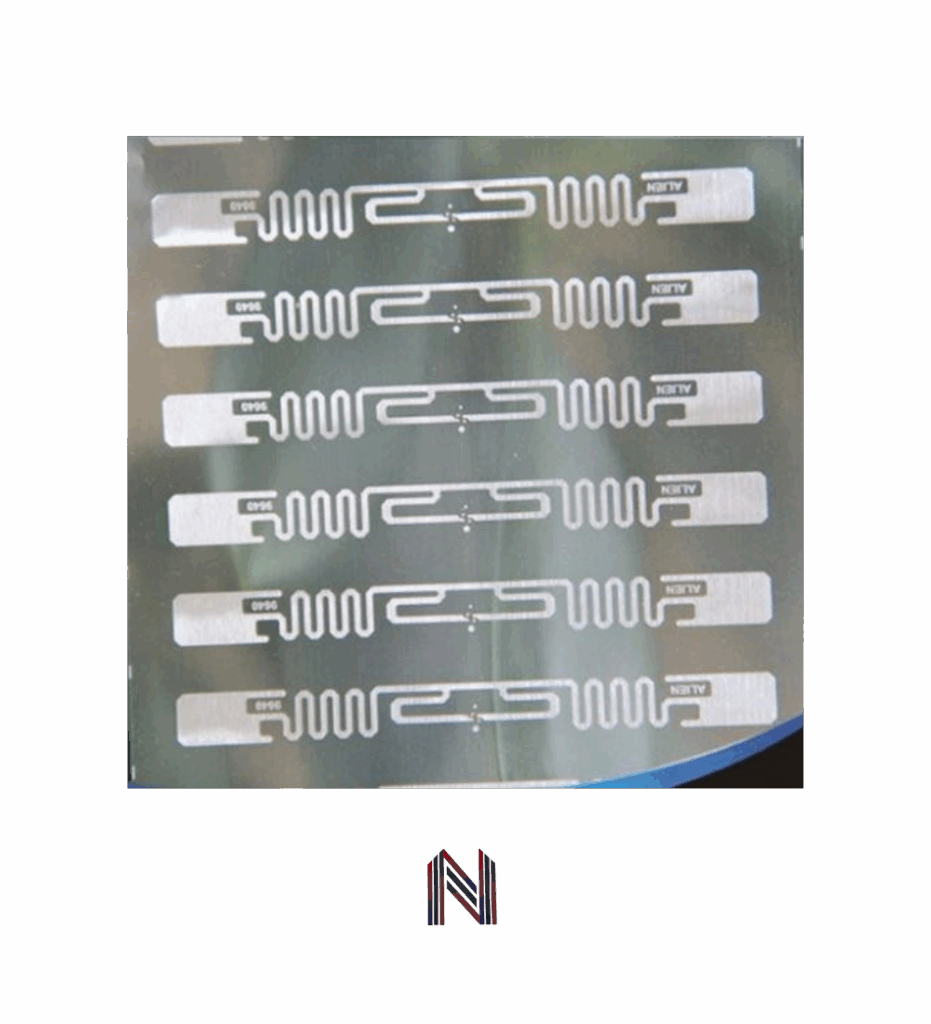

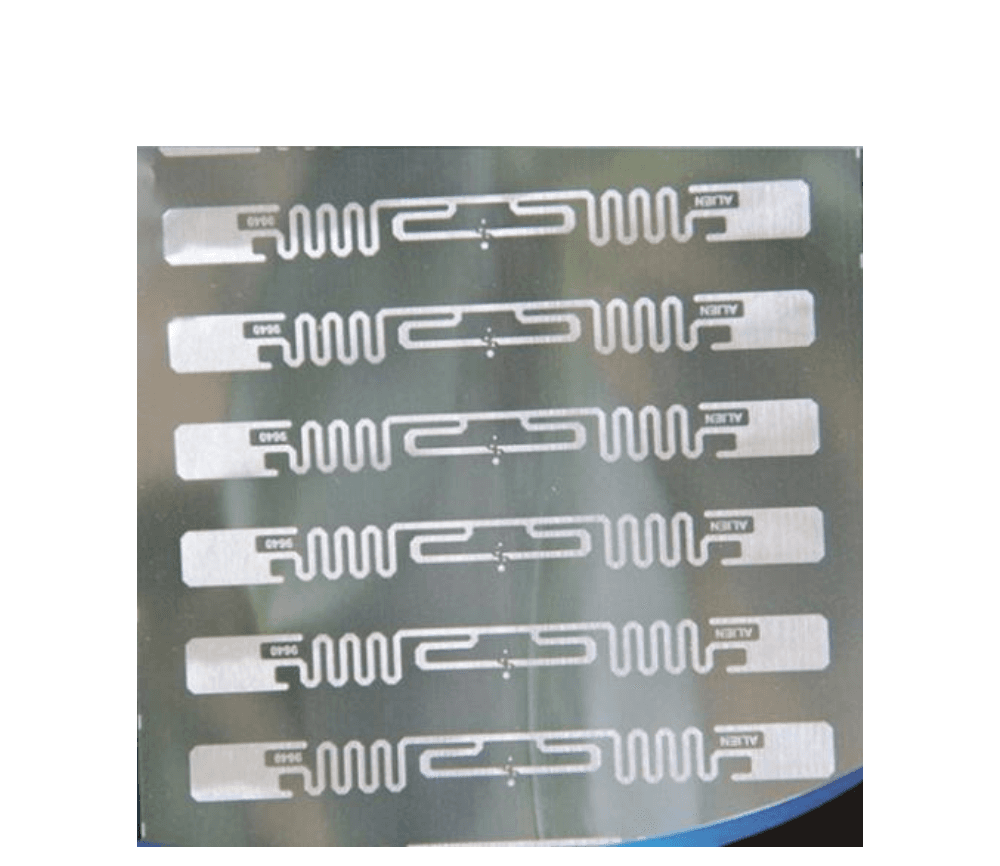

RFID Label (Alien 9640)

Powered by Alien's break-through Higgs 3 UHF RFID IC and innovative Squiggle antenna design, the ALN-9640 delivers industry leading EPC Gen 2 performance and reliability at competitive prices. ALN-9640 inlays are World Tag compliant, enabling consistent operation across the diverse frequencies of the Americas, Europe, Middle East, Asia, and Africa. With its Higgs-3 core, the Squiggle delivers unprecedented performance and a rich feature set including a 32-bit TID, a 64-bit Unique TID for authentication and serialization applications, an extensible EPC memory bank, 512-bits of user memory for distributed data applications, and password protected read and write support capabilities to prevent unauthorized viewing and modification of the tag's data. Typical applications for the Squiggle include, but are not limited to, corrugate cases, pallet placards, apparel hang tags, baggage tags, shipping labels, asset management, and file folder labels.

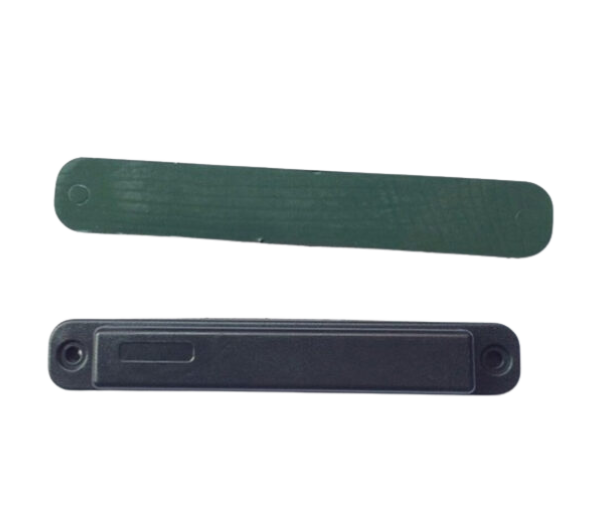

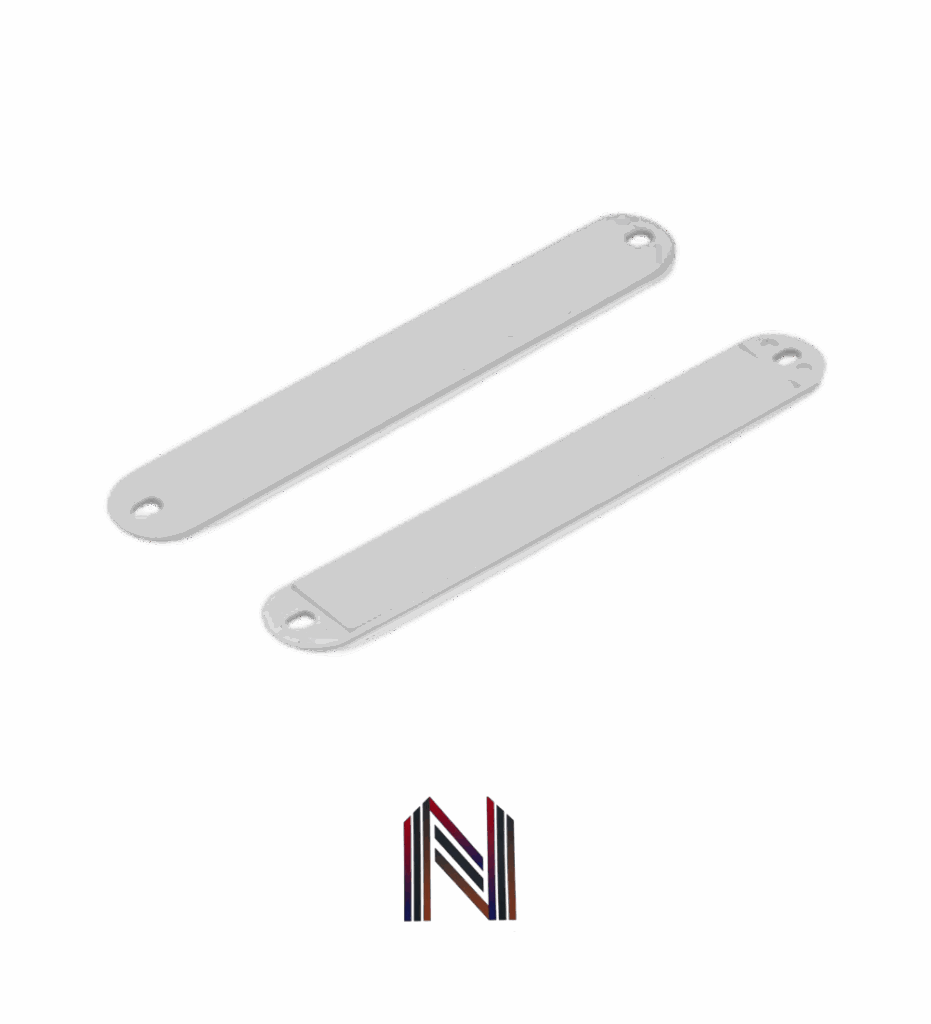

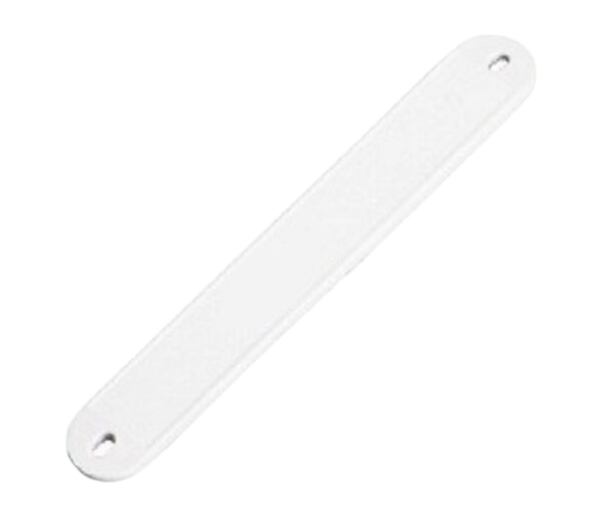

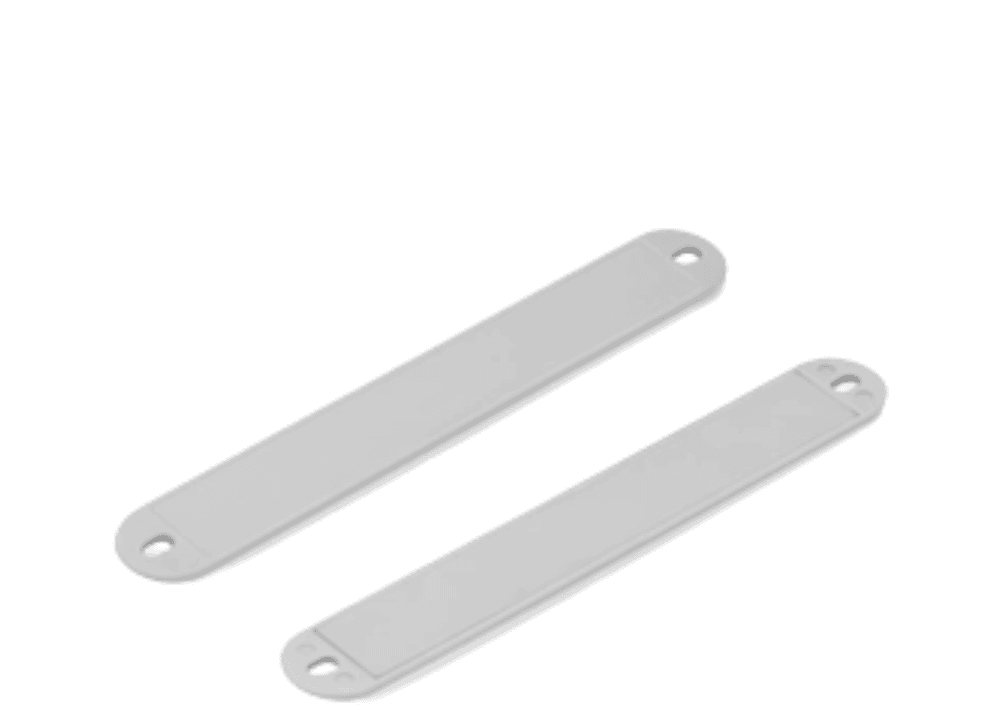

Outdoor Tag for Waste Bin Tracking and Smart City Applications (Model: NTS-RT 62)

• •Model Number: NTS-RT 62
• •Application: Outdoor tag for application on wall / waste bin for smart city projects
• •Material encasement: PC / ABS high Impact
• •Tag Type / Chip Type: UHF (Ultra High Frequency)
• •Frequency: 865 MHz – 868 MHz (ETSI) and 902-928 MHz
• •Protocol Standard: EPC Class 1 Gen 2; ISO 18000-6C protocol compliant
• •Operation Mode: Fixed or FHSS programmable by software
• •Memory of IC: 32 bits TID, 96 bits EPC number, 512 bits user memory
• •Read Range: >12 mt (Reader and Environment dependant)
• •Write Range: >6 mt
• •Dimensions: 12 cm x 2 cm x 0.4 cm

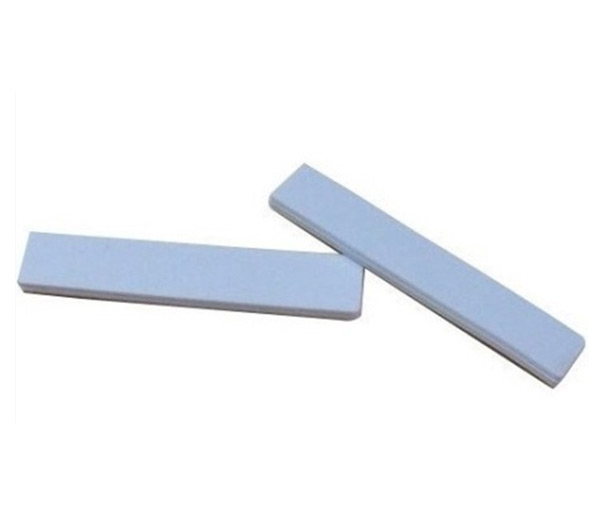

RFID Silicon Laundry Tag (Model: NWS-RT 07 B)

• •Project: Laundry Tracking & Identification.
• •Frequency: UHF | Material: Silicon | Colour: White
• •Size: 55 x 11 x 2.5 mm | Read Range: 6 MT
• •Wash Cycle: 180
• •Suitable for washing, dying & ironing of linen, garments
• •Chip: Alien Higgs 3
• •Withstands high temperatures and washing cycles, perfect for laundry applications

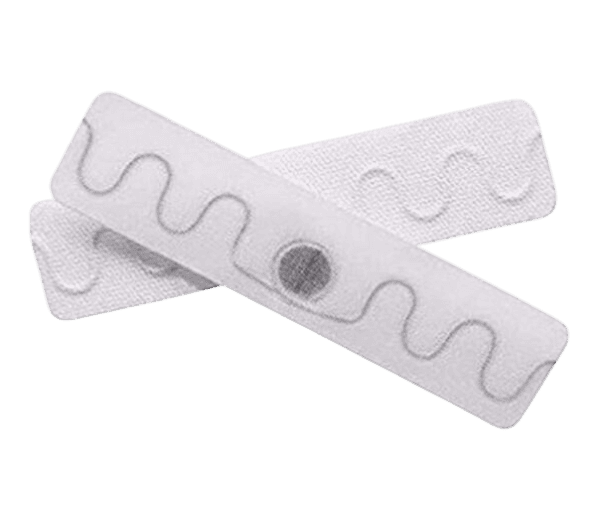

RFID Fabric Laundry Tag (Model: NWS-RT 07 C)

• •Project: Laundry, Garment Tracking.
• •Frequency: 865-867 MHz | Material: Flexible textile cloth | Colour: White
• •Size: 70 x 15 x 14.4 mm | Read Range: 2-3 MT
• •Wash Cycles: 220
• •Suitable for Hotels, Hospitals, commercial laundry applications.
• •Chip: Philips UCODE 7
• •Flexible and comfortable for garment tracking

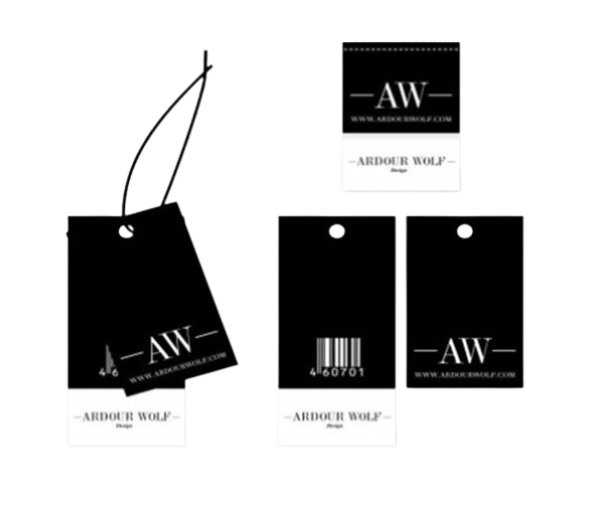

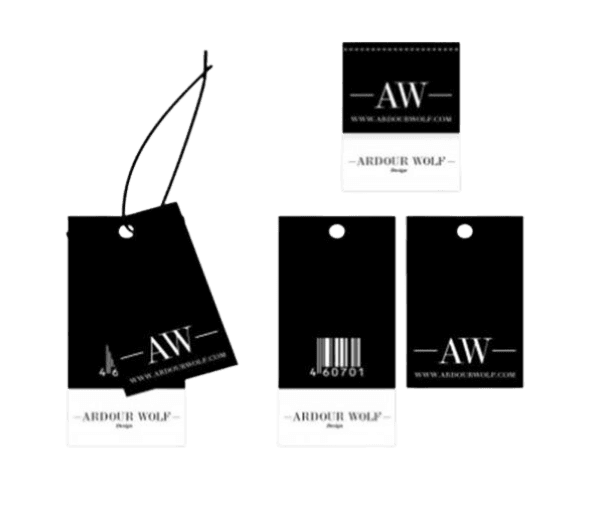

RFID Garment Hang Tag (Model: NWS-RT 07 D)

• •Project: Apparel management in retail & production
• •Frequency: UHF | Material: PET/Paper
• •Colour: Customize printing as required — barcode, text, logo, size, model etc.
• •Size: Customize | Read Range: 6-7 MT
• •Suitable for manufacturer, retailer, e-commerce
• •Customisable with branding and information display printing options

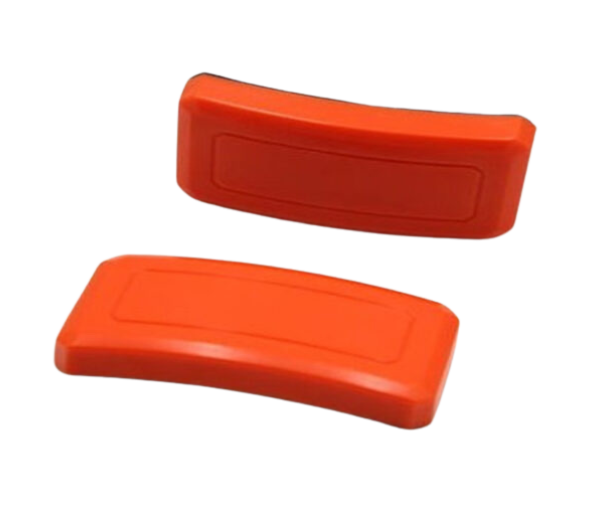

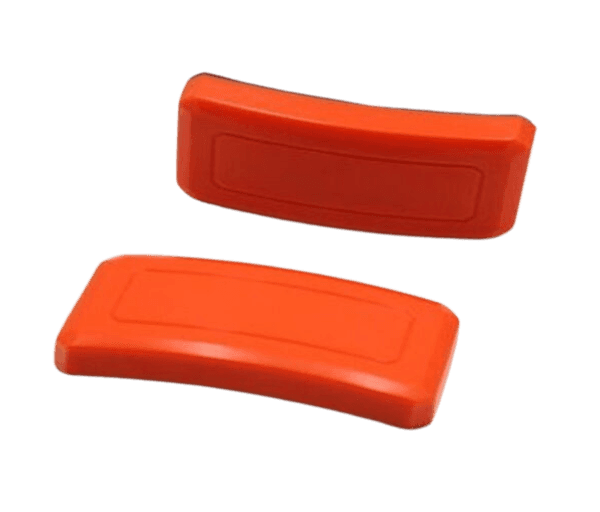

RFID Cylinder Tag

• •Project: Gas cylinder tracking for manufacturers & distributors, oil tankers and storage vessels.
• •Frequency: UHF | Chip: Impinj Monza | Read Range: Up to 6 MT
• •Attachment: Very strong 3M adhesive provided at back side.
• •Dimension: 6.2 x 3.2 x 0.8 cm | Material: ABS | Protection: IP 68
• •Specifically designed for tracking material which has a cylindrical shape

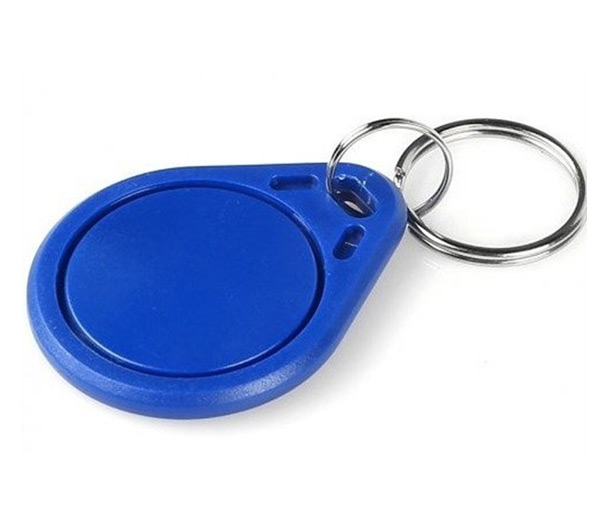

RFID Key fob Tag (Model: NWS-RT 14)

• •Project: Access control for lockers in gyms, hotel locks, club houses, banks, schools / colleges etc.
• •Frequency: HF 13.56 (Mifare), LF 125 (TK 4100)
• •Read Range: 10 cm | IP 67 protection
• •Read & write up to 1 million transactions
• •Material: High quality PVC ABS
• •Colour: Various colours & customize printing option
• •Water proof and dust proof.

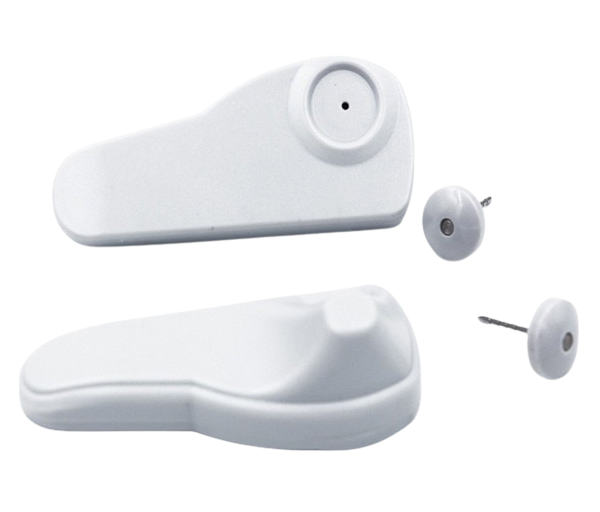

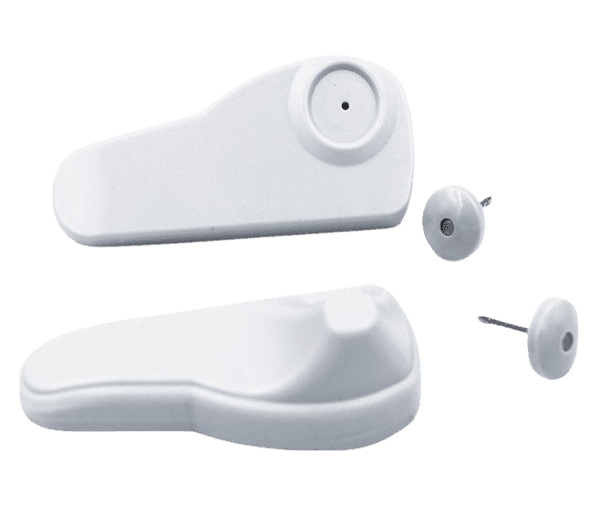

RFID + EAS Tag (Model: NWS-RT 19)

• •Cloth security, anti theft, apparel / garment tracking & security, inventory management.
• •Frequency: EAS + UHF RFID 865-867 MHz + 8.2 MHz / 58 KHz | Read Range: 8 – 9 MT
• •Material: ABS | IP 54 | Weight: 12.5 gram
• •Chip: Impinj Monza R6P | Memory: 128 bit, User Memory 32 bit | IP54 protected
• •Re-write up to 100000 times. 10 years warranty.

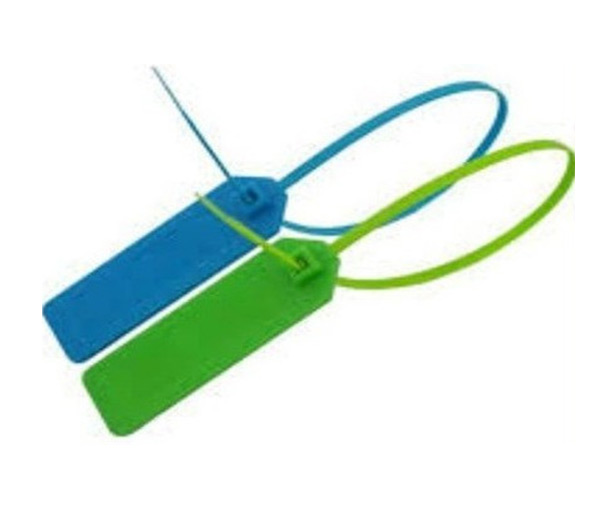

RFID Cable Tie Tag (Model: NWS-RT 03)

• •Project: Asset tracking, inventory tracking, protecting pilferage of items stored in sacks, door lock for transportation vehicles etc.
• •Frequency: UHF | Chip: Alien Higgs 3 / Monza
• •Read Range: Up to 8 MT | Material: PVC
• •Anti collision with excellent accuracy
• •Tail size and base can be customized along with colors and printing options.

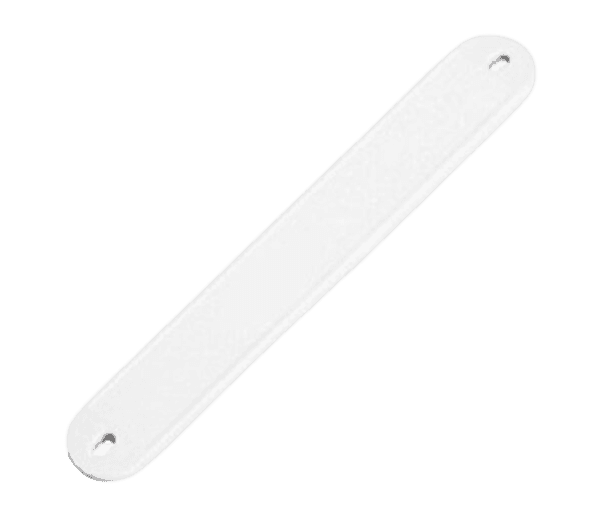

RFID Pallet Tag (Model: NWS-RT 51)

• •Project: Pallet tracking, asset management, warehouse movement tracking etc.
• •Frequency: UHF | Chip: Alien Higgs 3 / Higgs 4 / Monza
• •Read Range: Up to 10 – 12 MT
• •Attachment: Rivet / adhesive at back | IP 67 protection
• •Dimension: 12 x 15 x 3 mm | Anti collision
• •Material: High quality ABS double coated and laminated for long life, or soft PVC (choose)
• •Water proof, dust proof, chemical resistant. Designed for rough & harsh environments.
• •96 bit TID, 512 bit user memory.

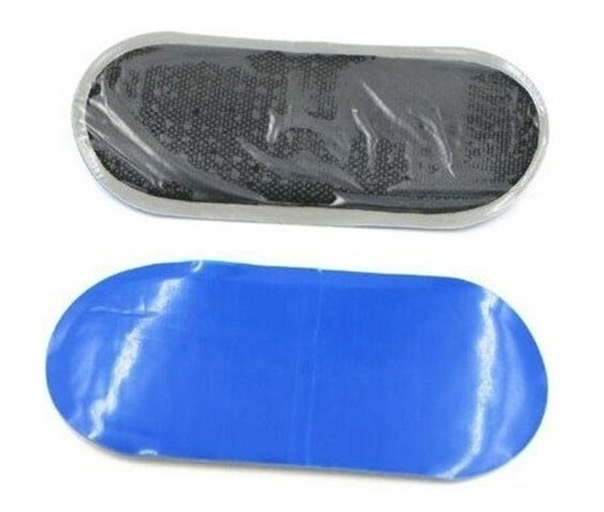

RFID Tyre Tag (Model: NWS-RT 51)

• •Project: Tyre identification & tracking for transportation & cab companies. Best suited to cars, buses, heavy trucks etc.
• •Frequency: UHF (865 – 867 MHz)
• •Protocol: ISO / IEC 18000 6C Class 1 Gen 2
• •Read Range: 3-4 MT | IP 68, tamper proof design
• •Chip: Alien Higgs 3 / Monza | Dimension: 130 x 85 x 3.5 mm
• •Material: Tyre rubber | Memory: 512 bits | Colour: Black
• •Temp. Resistance: -40 to +85 °C | Attachment: high quality adhesive

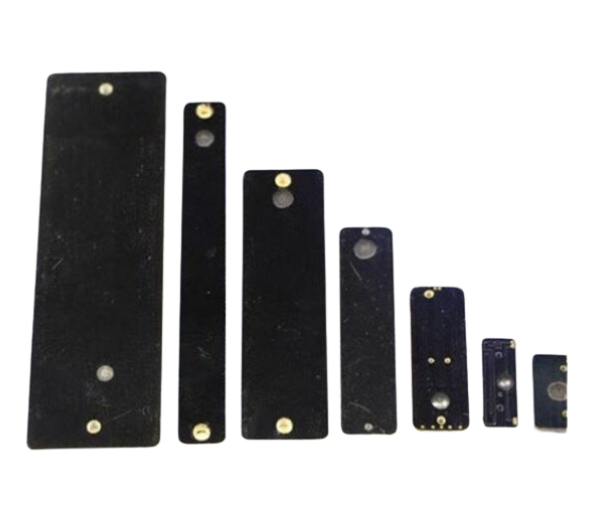

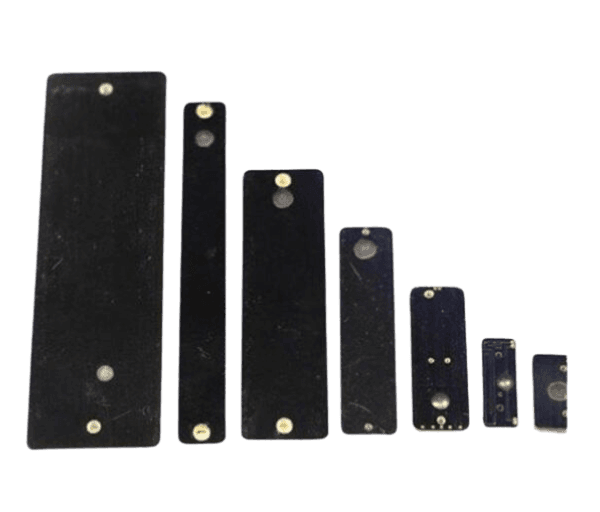

RFID PCB Tag (Model: NWS-RT 52)

• •Project: Warehouse logistics management, asset / inventory management, industrial component material tracking etc.
• •Primarily for application on metal items and high temp. up to 280 °C.
• •Frequency: UHF (865 – 867 MHz)
• •Protocol: ISO / IEC 18000 6C Class 1 Gen 2
• •Read Range: Up to 3 MT (depends on tag size and reader)
• •IP 68, tamper proof design
• •Chip: Alien Higgs 3 / Monza | Dimension: 130 x 85 x 3.5 mm
• •Material: PCB / FR4 | Colour: Black | Attachment: 3M adhesive / rivet

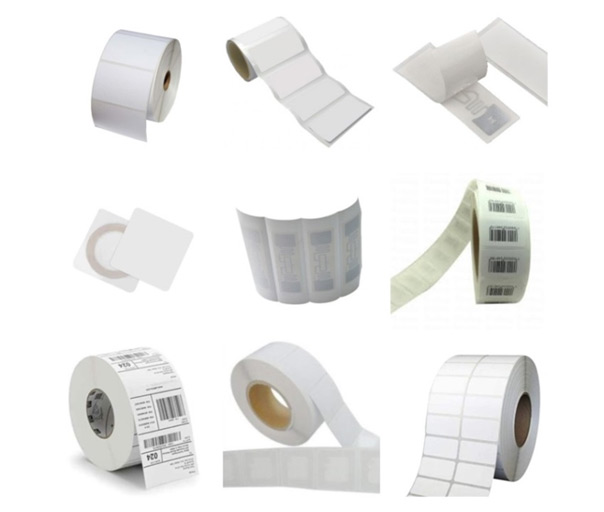

RFID Inlay / Label & Fully Customized

• •Project: General purpose asset tracking — furniture, packing boxes, plastic items, finished goods (non metal), item identification.
• •Frequency: UHF, HF, NFC
• •Chip: Alien Higgs 3 & 4, Impinj Monza, Smartrac, Philips NXP, Mifare, NTAG, Fudan
• •Material: Paper, coated paper, PET | Memory size depends on chip
• •Size & Printing: As per requirement
• •Adhesive: 3M, normal adhesive etc.
• •10 years data retention warranty. Read & write. Anti collision.
• •Reusable (with hole for hanging) or one time use (with adhesive)
• •Temp: -5 to +60 °C

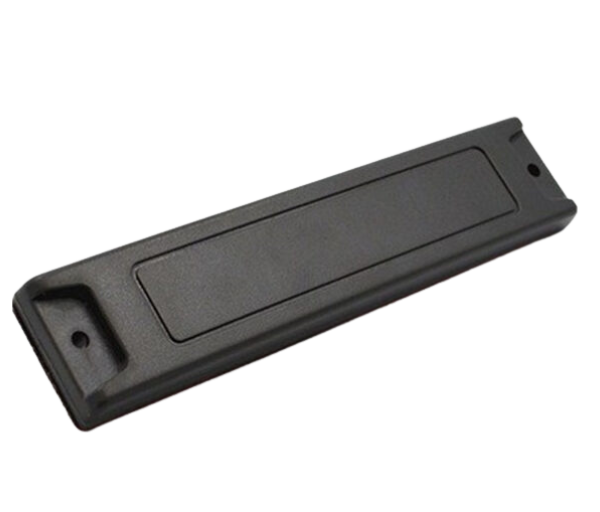

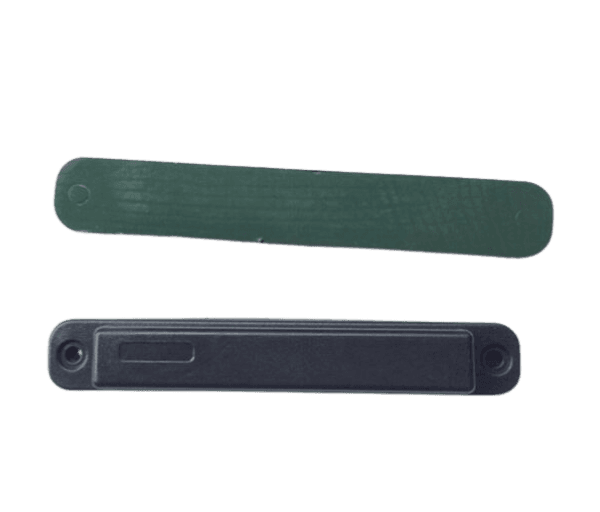

RFID Mount on Metal Tag (Model: NWS-RT 135)

• •Chip: Alien Higgs 3
• •Frequency: UHF ISO 18000 6C EPC Gen2
• •Range: 8-10 metres | Size: 135 x 22 x 5 mm
• •Material: High quality ABS | IP 67
• •Apply: Adhesive / screw fix
• •Operating Temp: -25 to +80 °C
• •Available in two sizes for easy attachment to metal surfaces

RFID Mount on Metal Tag — compact (Model: NWS-RT 135)

• •Chip: Alien Higgs 3
• •Frequency: UHF ISO 18000 6C EPC Gen2
• •Read Range: 6-7 metres
• •Material: High quality ABS | IP 67
• •Apply: Adhesive / rivet
