Model NTS-IR 02
- Interface: RS232, RS485 and Wiegand

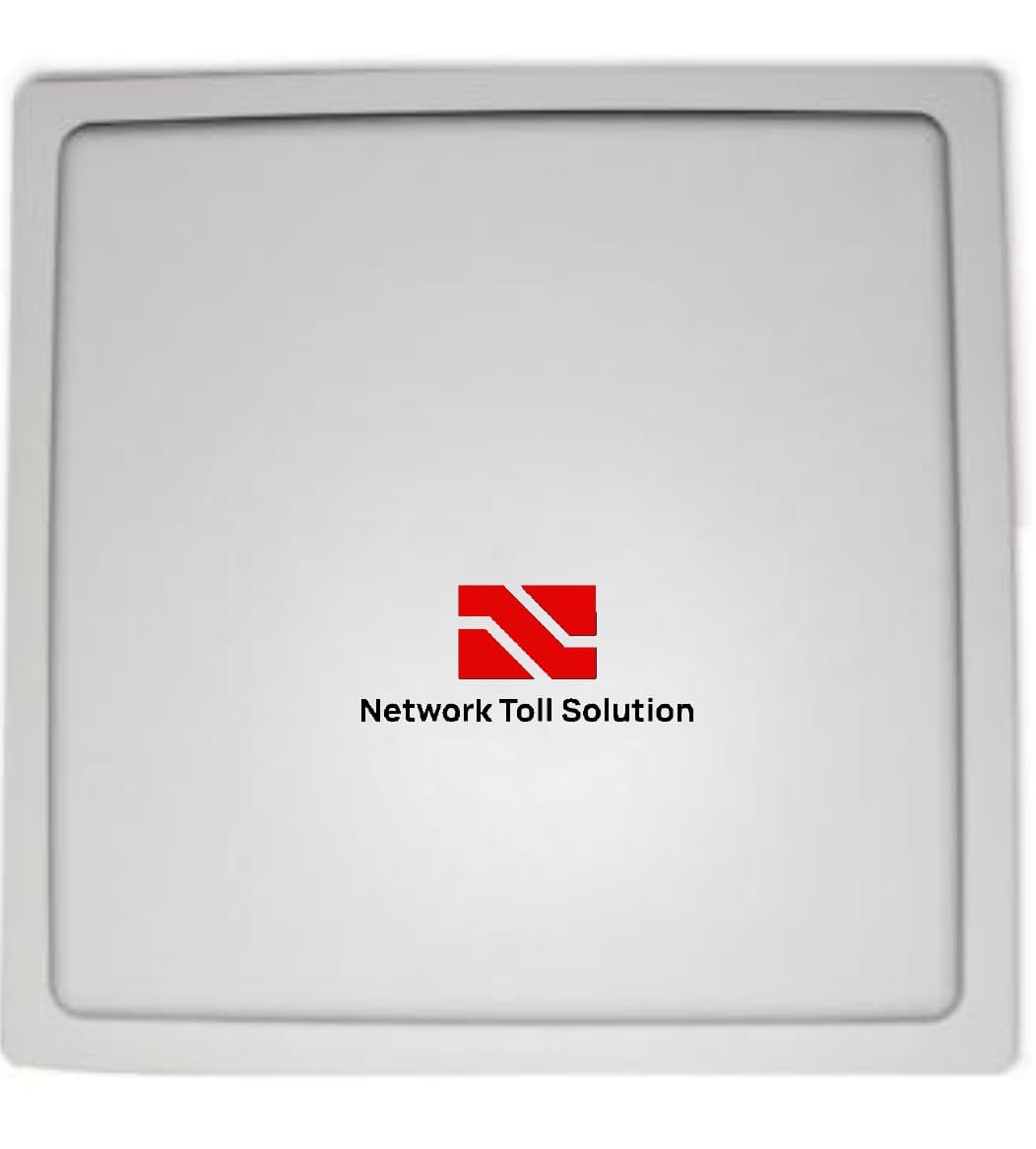

RFID UHF Long-Range Integrated Reader, Model NTS-IR-02
15 m read range · IP65 · RS232, RS485, Wiegand, TCP/IP
NTS-IR 02 is one of the most powerful all-weather, ruggedized integrated RFID readers, designed with an advanced digital signal processing algorithm to support high and accurate read-write operation. It works on global UHF frequency standards (865-868 MHz, 902-928 MHz) and has a read range of up to 15 m (adjustable), making it an ideal and widely used long-range UHF reader for gate automation, parking management, personnel tracking and material asset identification.
It comes with a 12 dBi integrated antenna that gives an excellent tag identification rate even in harsh environments. The reader supports RS232, RS485, Wiegand and TCP/IP (RJ45) interfaces, is IP65 rated and has a built-in LED and buzzer. It comes with mounting accessories, adapter and SDK for configuration and integration with third-party software.
Models & specifications
Model NTS-IR 02T
- Interface: RS232, RS485, TCP/IP (LAN)
Application Areas
- Vehicle tracking and gate automation with boom barrier
- Asset and inventory tracking in warehouse and manufacturing
- Automated attendance management in school / university and corporate office
- Livestock movement tracking
- Marathon and race time tracking
- Logistics
Specification
| Model Number | NTS-IR 02 |
|---|---|
| Protocol | ISO 18000-6B, EPC Class 1 Gen2 (ISO 18000-6C) |
| Frequency | Global 865 – 868 MHz and 902 – 928 MHz |
| Protection Grade | IP 65 |
| Frequency Hopping | FHSS software programmable or fixed frequency |
| RF Power Output | 0-30 dBm, software adjustable |
| Antenna | 12 dBi built-in antenna |
| Communication Port | RS232, RS485, Wiegand, TCP/IP (LAN) |
| Operating Mode | Auto-running, interactive and trigger-activating work mode |
| Read Range | Up to 15 metres |
| Write Range | 0-6 metres |
| Reading Clue | LED, buzzer / beep |
| Reading Speed | Software programmable, average reading per 64 bits <10 ms |
| Input Power Supply | 100-240V, DC +9V (power adapter) |
| Power Consumption | 1 watt |
| Mounting | Wall / pole mounting |
| Dimension | 44 cm x 44 cm x 5 cm |
| Weight | 2.4 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -20°C to +75°C |
| Humidity | 10 - 95% |
| Compliance | SDK for configuration and development |
| Additional | Comes with adapter, mounting clamp, reader cover, user manual |
| Warranty | 1 year. Can be extended. |
