Zebra FX9600 fixed UHF RFID reader, front view

Zebra FX9600 RFID Reader & Antenna

Zebra FX9600 fixed UHF reader paired with 8 dBi or 12 dBi circular antennas for long-range, high-density reading.

Models & specifications

Zebra FX9600 Fixed UHF Reader

Ports: 4-port or 8-port monostatic RF ports (model dependent)
RF Power: Up to +33 dBm transmit power
Protocol: EPC Gen2 V2 / ISO 18000-63
Frequency: Region-dependent band plan; 865–867 MHz for India
Power: Power over Ethernet (PoE/PoE+) or external supply
Housing: IP53 sealed, MIL-STD-810G rugged rating
Interfaces: 10/100 Ethernet (RJ45), USB Host/Client, Serial (DB9), optically isolated GPIO
Application: Warehouse and dock-door portals, logistics, inventory management, RFID gates

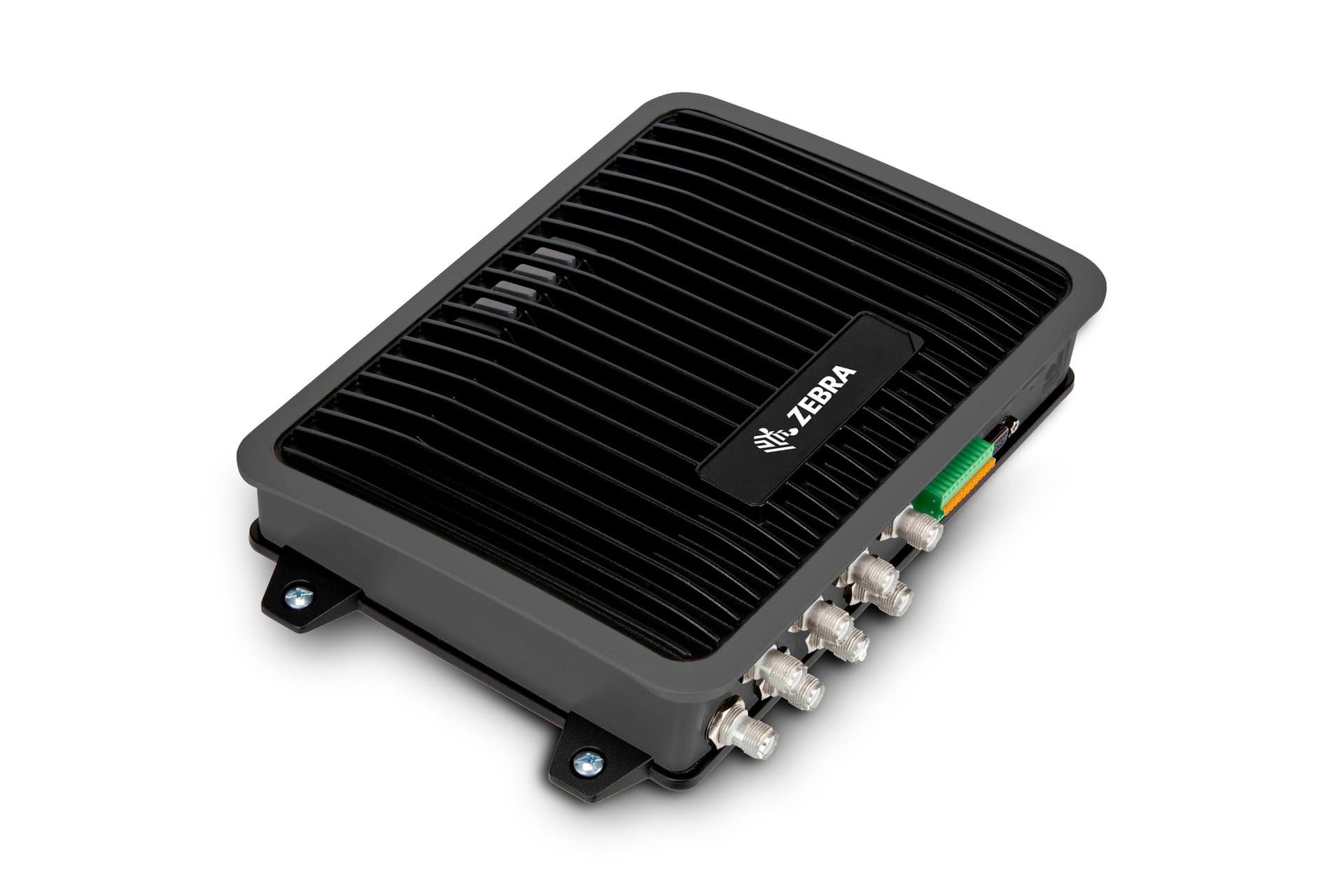

Zebra FX9600 fixed UHF RFID reader, angled view showing antenna ports

Zebra FX9600 — Angle View

8 antenna ports (RP-TNC connectors) shown on the 8-port variant
DIN-rail or wall mountable

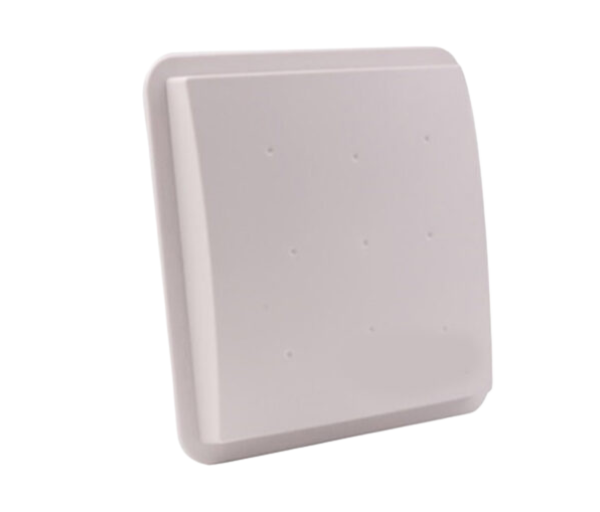

8 dBi circular polarized RFID antenna, model NWS-4A 02

8 dBi Antenna (Model: NWS-4A 02)

Circular Polarized
N Female connector (Included)
Read Range: Up To 8 Meters with single Antenna.
Front to Back Ratio: >=20
Half Power Beam Width: Horizontal and Vertical 65.
IP 66 Rated | Material: UV & ABS
Colour: White | Mounting: Included

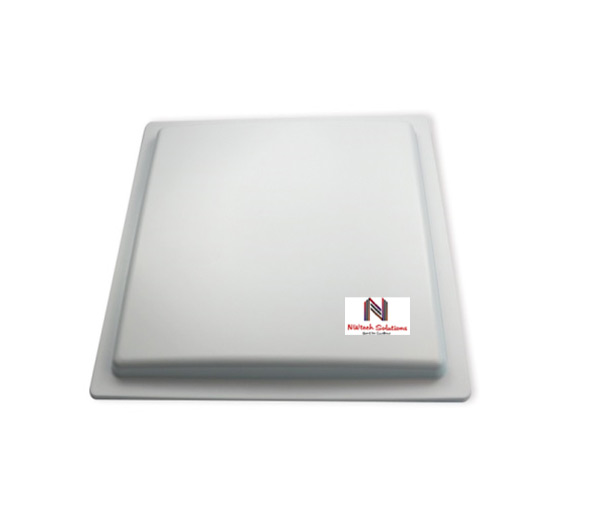

12 dBi circular polarized RFID antenna, model NWS-4A 01

12 dBi Antenna (Model: NWS-4A 01)

Circular Polarized
N Female connector (Included)
Read Range: Up To 15 Meters with single Antenna.
Front to Back Ratio: >=25
Half Power Beam Width: Horizontal and Vertical 40.
IP 66 Rated | Material: UV & ABS
Colour: White | Mounting: Included

FAQs — Zebra FX9600 RFID Reader & Antenna

What is the difference between an RFID UHF reader and an integrated reader?

An integrated reader combines the reader and antenna in a single housing, while a fixed UHF reader like the FX9600 is a standalone unit with several antenna ports. That lets one reader cover several lanes, gates or zones at once, and lets you choose 8 dBi or 12 dBi antennas per position based on the read range each one needs.

How far can the reader detect tags?

Read range depends on the antenna. A single 8 dBi antenna reads up to 8 metres, and a single 12 dBi antenna reads up to 15 metres. Both are circular polarized and IP 66 rated, so tag orientation and outdoor exposure have little effect on performance.

Where are fixed UHF readers typically deployed?

They suit logistics and warehouse management, dock-door portals, RFID tunnels and gates, and inventory management — anywhere large numbers of tags pass a fixed point. The FX9600 supports up to 8 antenna ports at up to +33 dBm, with PoE power and a rugged IP53 housing.
